11KV 73KM Transmission Line Galvanized 4mm Electric Steel Pole with Bitumen

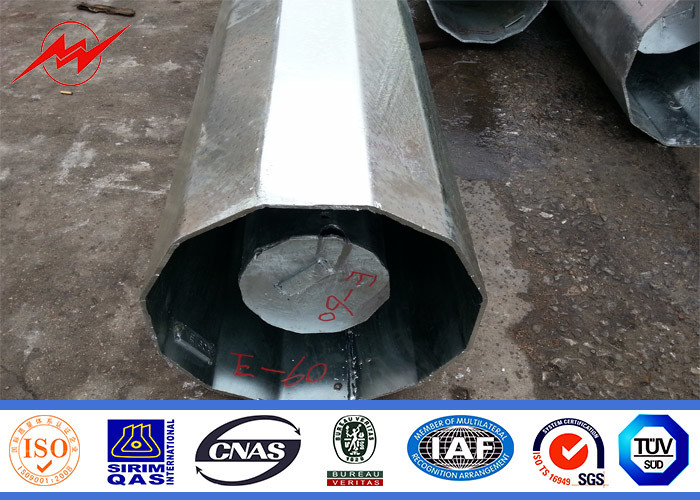

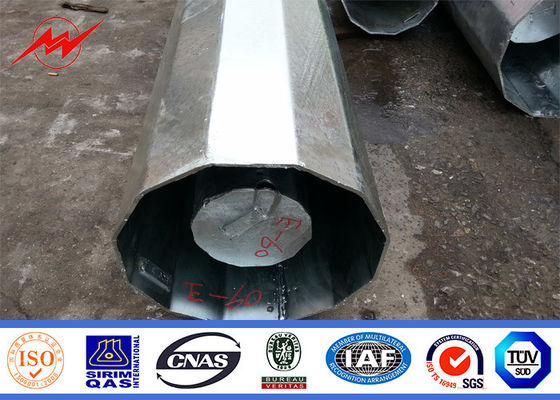

تصویر بزرگ : 11KV 73KM Transmission Line Galvanized 4mm Electric Steel Pole with Bitumen

جزئیات محصول:

Place of Origin:	China
نام تجاری:	MilkyWay
گواهی:	ISO9001/BV/
Model Number:	Electric Steel Power Pole

پرداخت:

Minimum Order Quantity:	1 pcs
قیمت:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

مخاطب

توضیحات محصول جزئیات

Product Name:	Electric Power Pole	Power:	11KV
Material:	ASTM A572 Gr50	Surface treatment:	Hot dip galvanization
Glavanization standard:	Average not less than 86um	Wall thickness:	4mm
برجسته:	metal power poles,steel utility poles , steel utility poles

11KV 73KM Transmission Line Galvanized 4mm Electric Steel Pole with Bitumen

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Steel Material Grade
China GB	America ASTM ASME	Japan JIS	Europen EN	Gemany DIN	England BS	International ISO
16Mn 14MnNd Q345(A.B.C.D.E)	A572MGr.50 A633MGr.C A633MGr.D	SM490A SM490B SM490C	S355JR S355JOS 355J2G3 S355J2G 4S355K2 G3 S355K2G 4S355N S355NL	St52-3	50A 50B 50C 50D 50DD	E355DD E355E Fe510B Fe510D
WH60/Q460 ( C.D.E)	A572MGr.65	SM570	S460N S460NL	StE460	55C 55E	E460C E460D
Q235 ( A.B.C.D) Q275 20 25 30 35 40 45 50 55 50Mn	A283MGr.C A283MGr.D 1020 1025 1030 1035 1040 1045 1050 1055 1053	SS400 SM400( A B) SS490 S20CS22C S25C S28C S30C S33C S35C S38C S40C S43C S45C S48C S50C S53C S55C S58C SWRH52B	S235JR S235JO S235J2G 3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	St37-2 St37-3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	40A 40B 40C 40D 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	Fe360 ( A.B.C.D) Fe430A C25E4 C30E4 C35E4 C40E4 C45E4 C50E4 C55E4 SL, SM

Specifications:

Item	TIP DIAMETER	BUTT DIAMETER	THICKNESS	Pole Shape
(m)	(MM)	(MM)	(MM)	8 sides
11.8m/5KN	150	355	3
11.8m/6.5KN	180	400	3
11.8m/8KN	190	440	3
11.8m/10KN	190	450	3.5
11.8m/12.5KN	220	500	3.5
11.8m/16KN	230	560	3.5
11.8m/20KN	240	585	4
11.8m/25KN	260	655	4
11.8m/32KN	260	660	5
11.8m/40KN	260	670	6
16m/5KN	150	375	4
16m/6.5KN	180	420	4
16m/8KN	190	460	4
16m/10KN	190	510	4
16m/12.5KN	220	525	4	12 sides
16m/16KN	230	585	4
16m20KN	240	585	5
16m/25KN	260	655	5
16m/32KN	260	670	6

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

11KV 73KM Transmission Line Galvanized 4mm Electric Steel Pole with Bitumen 0

More Project

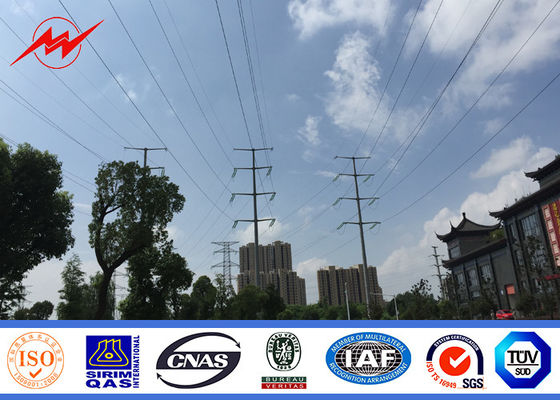

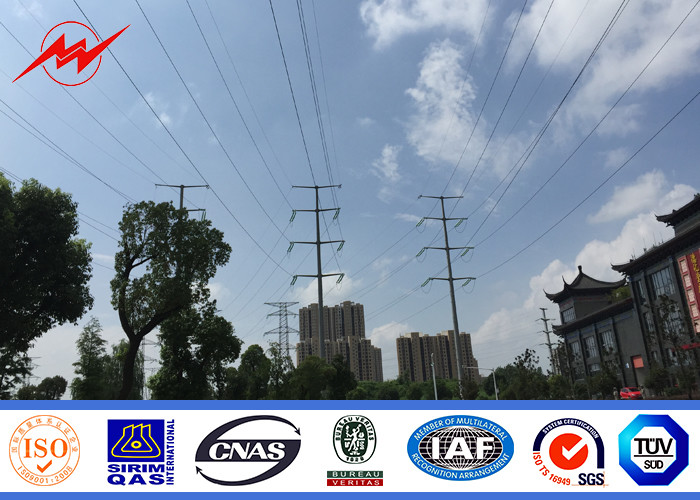

This is the one of our project for Venezuela.

11KV 73KM Transmission Line Galvanized 4mm Electric Steel Pole with Bitumen 1 .

FAQ

1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5. Warranty : 30 years
6.Surface treatment :hot dip galvanization
