|Product Name:||Galvanized Steel Power Pole||Application:||Power Line|
|Thickness:||1 mm to 36mm||Tolerance of the dimension:||+-2%|
|Life time:||50 years||Material:||Q345|
ISO 17M AWS D1.1 Galvanized Power Distribution Steel Transmission Poles
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
|Height||From 9 meter to 100 meter|
|Suit for||Electric Power Transmission and Distribution|
|Shape||Polygonal or Conical|
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
|Power Capacity||10kV to 220kV|
|Tolerance of the dimension||According to client’s requirement.|
|Surface treatment||Hot dip galvanized Following ASTM A 123, or any other standard by client required.|
|Joint of Poles||Slip joint, flanged connected|
|Length of per section||Within 14 meter once forming|
|Welding Standard||AWS (American Welding Society ) D 1.1|
|Thickness||1 mm to 36mm|
|Production Process||Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages|

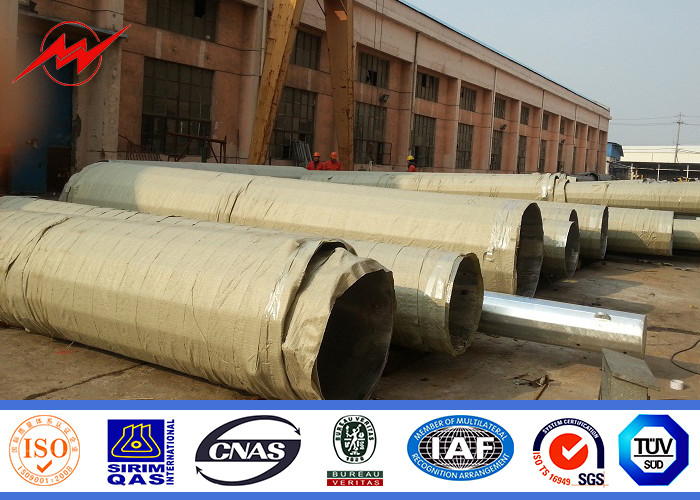

|Packages||Packing with plastic paper or according to client’s request.|
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Type of climbing rung
Technical information-Cross Arm
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
