220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles

گواهی
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

چت IM آنلاین در حال حاضر

220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles

چین 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده
220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles تامین کننده

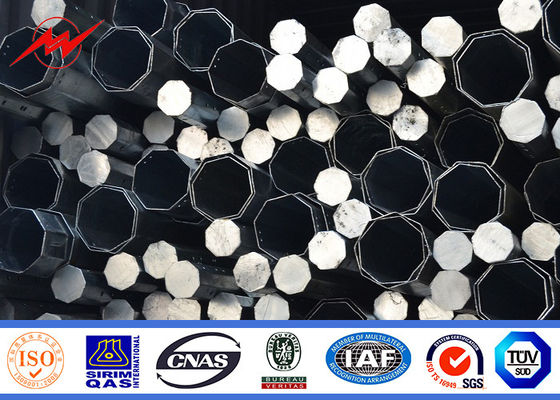

تصویر بزرگ :  220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles

جزئیات محصول:

Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Electric Steel Power Pole

پرداخت:

Minimum Order Quantity: 1 pcs
قیمت: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
مخاطب
توضیحات محصول جزئیات
Product Name: Electric steel power pole Power: 110KV
Suit for: Power transmission Line Surface treatment: Galvanization
Welding Standard: AWS D 1.1 Warranty time: 15 years
برجسته:

metal power poles,steel utility poles

,

steel utility poles

 220KV 12.8m 12KN Electric Steel Pole with Galvanization and Bitumen





 Material:

 All of our material are purchased from famous mill factory to assure the quality
 A mill certificate issued by the mill factory with stamp and signature must be provided before unload the    material in our factory ,otherwise we have our reason to refuse the material .
 Before put into production ,all the material must pass the chemical and physical analysis to make sure  that they have meet the requested strength and component.





 Specifications:

Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6





 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

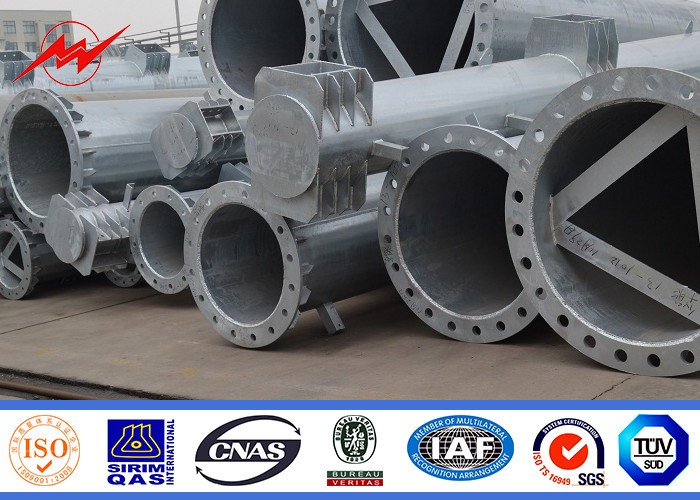

 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles 0









 Packaging & Shipping

 Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the  poles to avoide the damage on the galvanization of the pole ,anyway also can following by client  required , The loading capacity of 40HC or OT an be calulated calculation base on the client  actually specification and data.

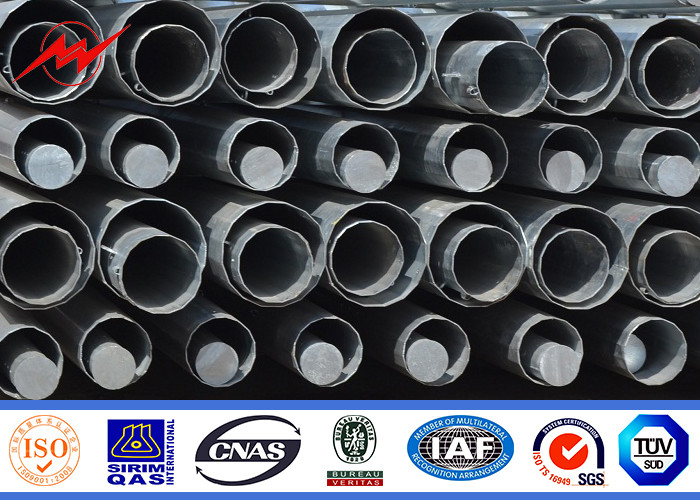

 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles 1





 Customer Feedback

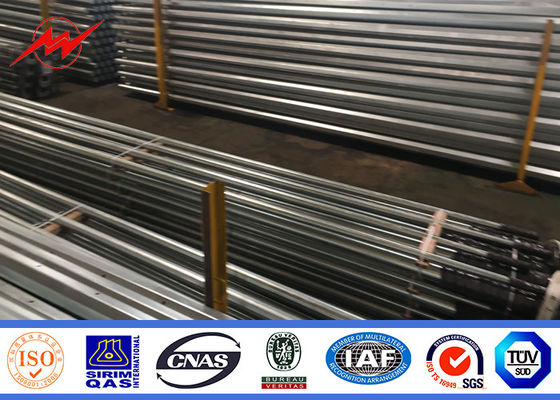

 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles 2
