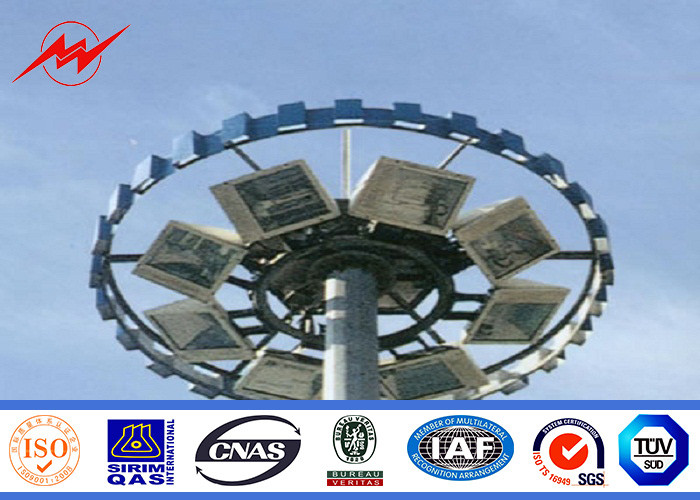

40m Multi Sided Seaport Lighting High Mast Tower With Lifting System

تصویر بزرگ : 40m Multi Sided Seaport Lighting High Mast Tower With Lifting System

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Milky Way
گواهی:	/BV/ISO
Model Number:	40m multi sided High Mast Light with lifting system for seaport lighting

پرداخت:

Minimum Order Quantity:	One 40 HQ
قیمت:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

مخاطب

توضیحات محصول جزئیات

Height:	from 20m to 50m	Suit for:	airport, seaport, plaza, stadium, square, highway, street way
Shape:	conoid,multi-pyramidal,columniform,poly	Welding Standard:	AWS D1.1
Tolerance:	+/-2%	Power:	400w-5000w
Design of pole:	Against earthquake of 8 grade
برجسته:	, , solar power light pole

Specification

1. lamp poles ,electric poles ,streetlighting poles, high mast poles ,garden light poles , outdoor lighting,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50,SS400, SS490,ST52-3

3. surface treatmemt: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 18meters once forming( single section)

6. Thickness: from 1mm to 22mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. Easy install and maintenance.

40m Multi Sided Seaport Lighting High Mast Tower With Lifting System 0

Type	Street Lamp pole, lamp post . Lamp column
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Tolerance of dimension	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
