69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole , Steel Tubular Pole

گواهی
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

چت IM آنلاین در حال حاضر

69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole , Steel Tubular Pole

چین 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole تامین کننده
69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole تامین کننده 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole تامین کننده 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole تامین کننده 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole تامین کننده

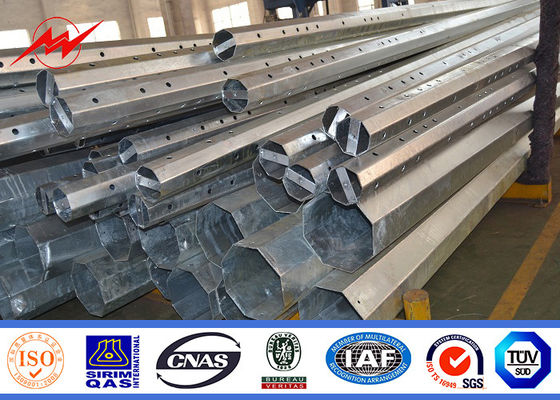

تصویر بزرگ :  69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole , Steel Tubular Pole

جزئیات محصول:

Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Steel Electric Power Pole

پرداخت:

Minimum Order Quantity: 1 pcs
قیمت: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
مخاطب
توضیحات محصول جزئیات
Product Name: Steel Electric Power Pole Application: Power Transmission
Surface treatment: hot dip galvanization powder coating Welding standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2
Galvanization standard: ASTM A 123 Lift time: 50 years
Warranty: 15 years
برجسته:

electric power pole,steel power pole

,

steel power pole

 69KV 11.8M Galvanized Steel Electric Power Pole 3mm for Power Transmission





 Specification:



Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 30mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→

Dimension verify →

Flange welding →Hole drilling →sample assemble → surface clean→

Galvanization or powder coating ,painting →Recalibration →Packages

Packages

Packing with plastic paper or according to client’s request.

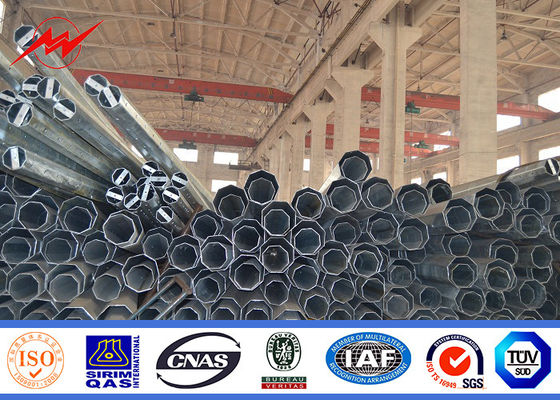

 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole 0



Packages:



Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

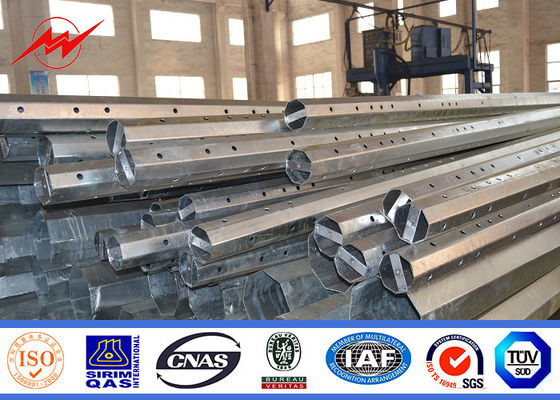

 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole 1





 Company Instruction:



 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

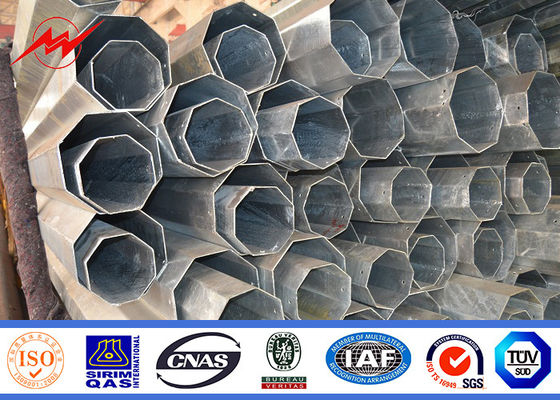

 69 KV 11.8 M Hot Dip Galvanized Electrical Power Pole ,  Steel Tubular Pole 2
