Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical

چین Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده
Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical تامین کننده

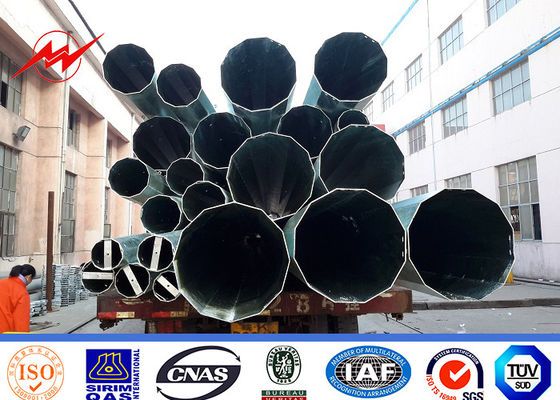

تصویر بزرگ :  Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical

جزئیات محصول:

Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Galvanized Steel Power Pole

پرداخت:

Minimum Order Quantity: 1 pcs
قیمت: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
مخاطب
توضیحات محصول جزئیات
Product Name: Galvanized Steel Power Pole Application: Power Line
Thickness: 1 mm to 36mm Tolerance of the dimension: +-2%
Life time: 50 years Material: Q345
برجسته:

galvanized light pole,steel power poles

,

steel power poles

 Outdoor 19M Galvanized Steel Pole Steel Power Poles with Cross Arm



 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical 0





 Specifications:



Height From 9 meter to 100 meter
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Thickness 1 mm to 36mm
Production Process Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Packages Packing with plastic paper or according to client’s request.


 The information to inquiry or purchase

 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.



 Technical information-Cross Arm

 Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical 1



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

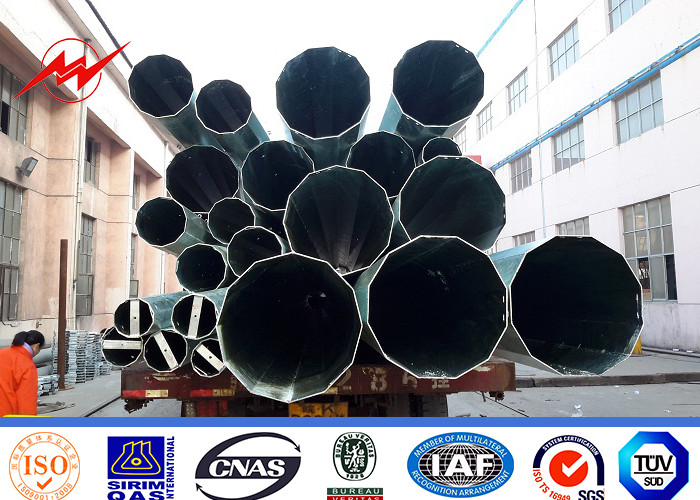

 Package

Explosion Proof Outdoor 19M Garden Light Pole Q345 Material Polygonal / Conical 2







 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and  so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
