Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed

چین Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed تامین کننده
Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed تامین کننده Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed تامین کننده Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed تامین کننده Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed تامین کننده

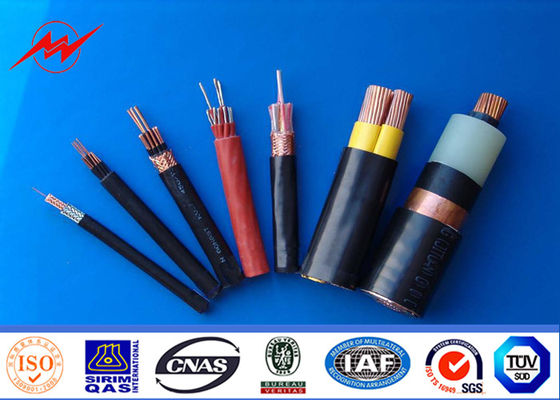

تصویر بزرگ :  Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: BAO WO
گواهی: ISO/CE/UL/CSA
Model Number: 300/500v copper conductor wire and cable

پرداخت:

Minimum Order Quantity: 3000 Meters
قیمت: USD1-10 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
Contact Now
توضیحات محصول جزئیات
Service Conditions: not more than 90℃ Surface: PVC or XLPE insulation
Color: red,white,black,green,yellow,blue Standard: ISO9001 JB8734.1~5-1998
Jacket: PE PVC/XLPE Type: copper wire,building wire,aluminum wire
voltage: 300v/500v

Fire resistance 300/500v copper conductor wire and cable pvc sheathed





Specification

INSULATION THICKNESS(mm) :

1.0—2.79

sheath:

PE.PVC/XLPE

No. of cores:

1,2,3,4,2+1,3+1,4+1 and more

Conductor

99.5% Pure Oxygen Free Copper

Color:

Black, Green and as customer request

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Application :

These wire and cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial applications where not subject to mechanical damage.

Voltage :

300/500v

Common Model name :

BV          Copper Core PVC Insulation cable

BVR       Copper Core PVC Insulation Flexible cable

BVV       Copper Core PVC Insulation PVC Sheath Round cable

BVVB     Copper Core PVC Insulation PVC Sheath Flat cable

BV-90    Copper Core Heat-resistance 105℃ PVC Insulation



Section of conductor(mm ²):



1.0-70

Delivery time:

10—20 days

Payment Terms: L/C,D/A,D/P,T/T, Western Union

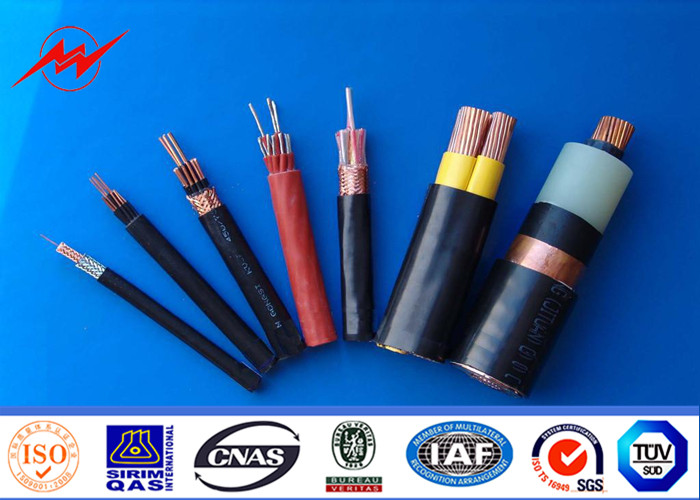

  Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed



Application:

Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 300/500v.





Introduction:

1. Product standard: GB5023.3-2008

2. Conductor:Single Bare Copper

3. PVC insulation

4. Rated voltage: 300/500V

5. The long-time working temperature should not beyond 90.

6. Adopt standard thickness, easy truncation.

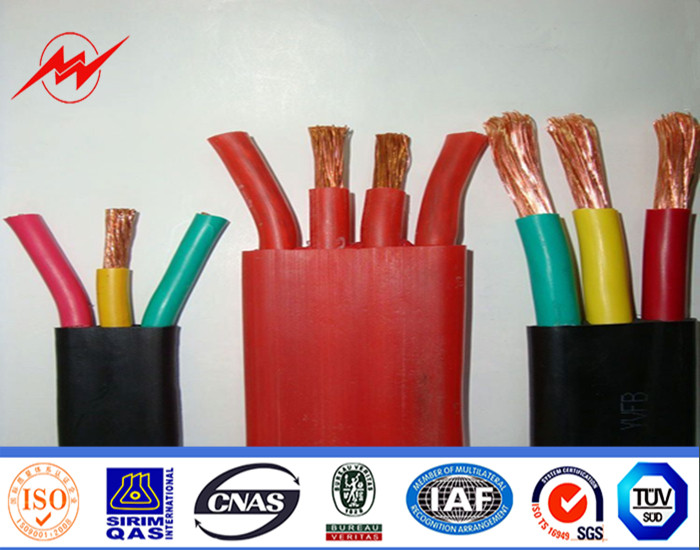

    Fire Resistance 300/500v Electrical Wire And Cable Pvc Sheathed



Packing

1. Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.

2. Treated wooden/steel-wooden drums for big diameter cables.

3. Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.

Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
