Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

تصویر بزرگ : Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

جزئیات محصول:

Place of Origin:	China
نام تجاری:	MilkyWay
گواهی:	ISO9001/BV/
Model Number:	Electric Power Pole

پرداخت:

Minimum Order Quantity:	1 pcs
قیمت:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

مخاطب

توضیحات محصول جزئیات

Product Name:	Electric Power Pole	Application:	Power Transmission
Galvanization standard:	Hot dip galvanization	Lift time:	50 years
Warranty:	15 years	Design:	Customized
Standard:	ISO
برجسته:	electric power pole,transmission line poles , transmission line poles

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

Specifications:

Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Design Load in Kg	300~ 1000 Kg applied to 50cm from the to pole
Marks	Name plate through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized color polyester power or any other standard by client required
Joint of Poles	Insert mode,inner flange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Di mension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

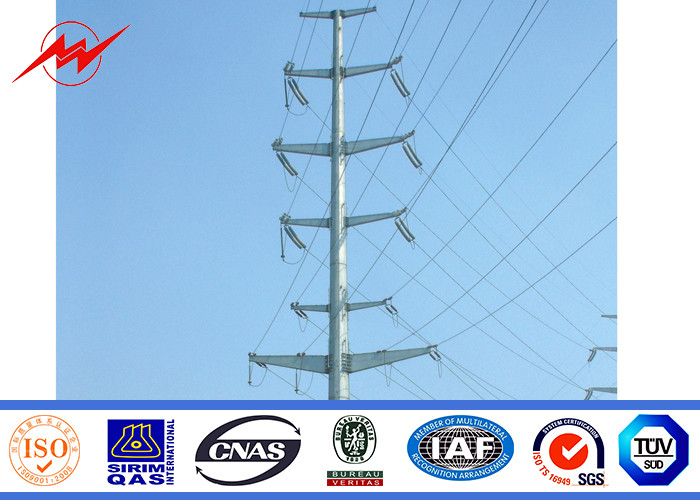

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 0

More Photos:

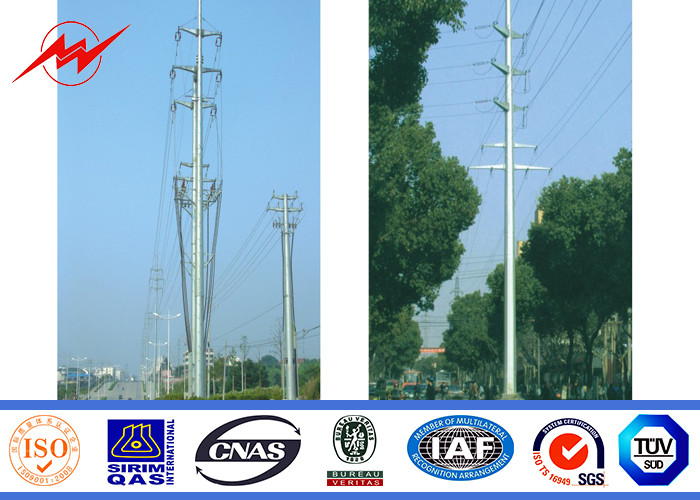

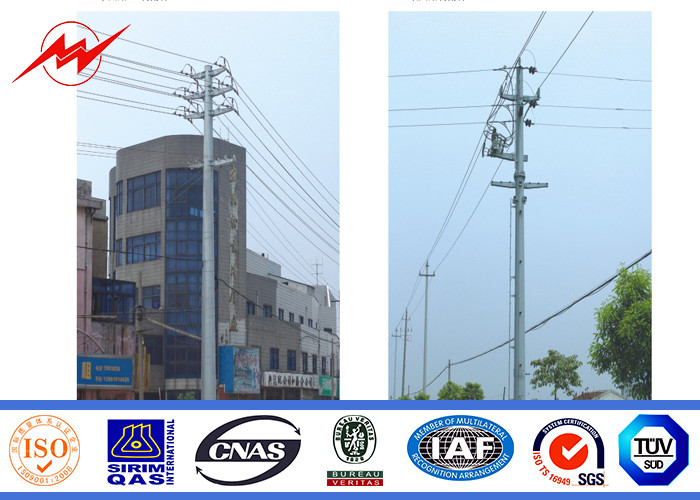

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 1

Company History:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.

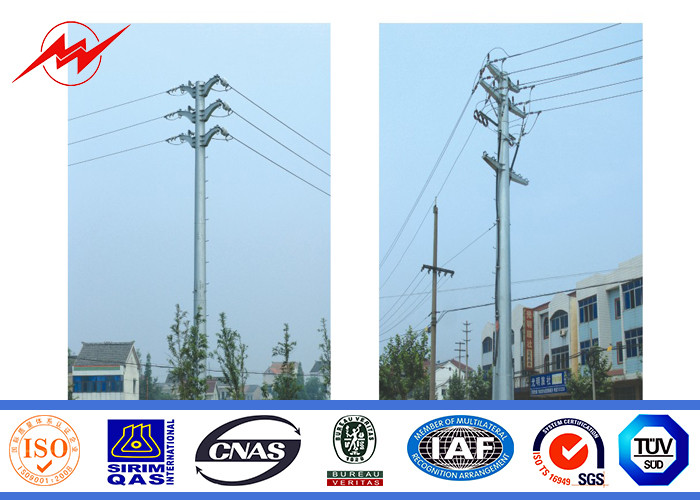

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 2
