Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm

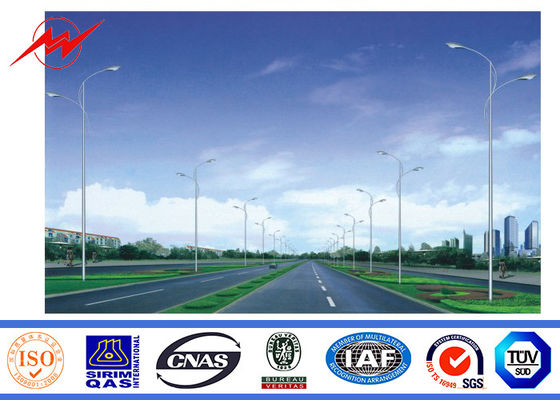

تصویر بزرگ : Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm

جزئیات محصول:

Place of Origin:	China
نام تجاری:	MilkyWay
گواهی:	ISO9001/BV/
Model Number:	Galvanized Steel Pole

پرداخت:

Minimum Order Quantity:	1 pcs
قیمت:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

مخاطب

توضیحات محصول جزئیات

Product Name:	Galvanized Steel Pole	Wind Speed:	160KM/H
Welding standard:	AWS D 1.1	Design:	Customized
Material:	Q235	Lift time:	50 years
Warranty:	15 years
برجسته:	galvanised steel poles,steel transmission poles , steel transmission poles

Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm

Specifications:

Height	From 6 m to 15 m
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.

Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm 0

Production Flow:

The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm 1

Company Introduction:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on- cctv winch camera telescopic mast pole

Painting HDG 9m Dual Outreach Galvanized Steel Pole with Two Cross Arm 2
