جزئیات محصول:
پرداخت:
|
| Product Name: | Galvanization Electric Power Pole | Application: | Power Transmission |
|---|---|---|---|
| Dimension tolerance: | +- 2% | Welding Standard: | AWS D 1.1 |
| Galvanization Standard: | ASTM A 123 | Voltage: | 10kv To 400kv |
| برجسته: | electric power pole,transmission line poles,transmission line poles |
||

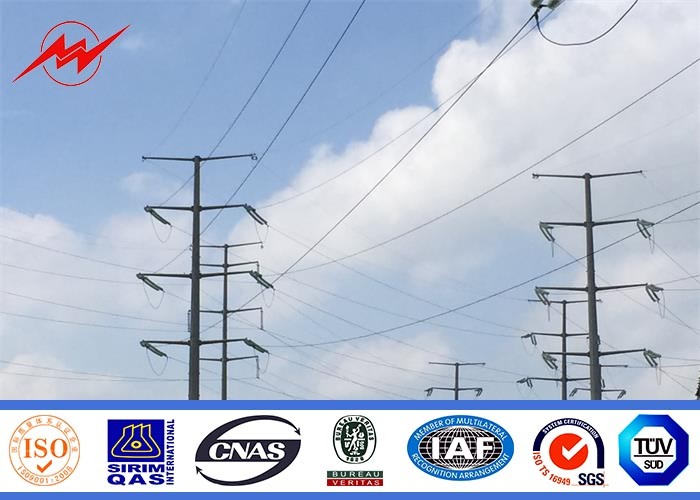

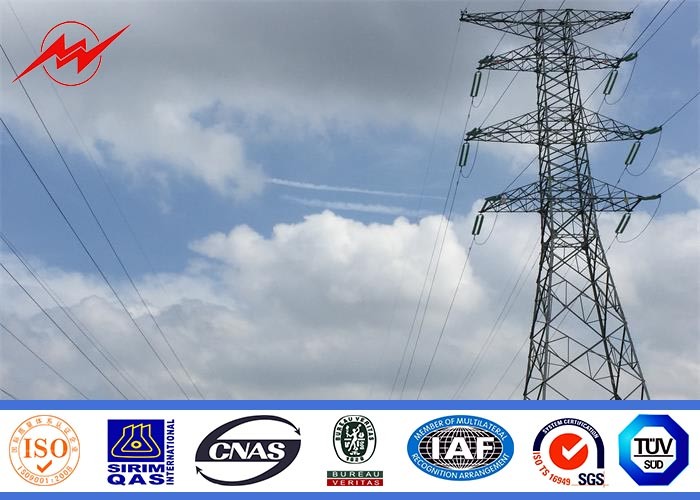

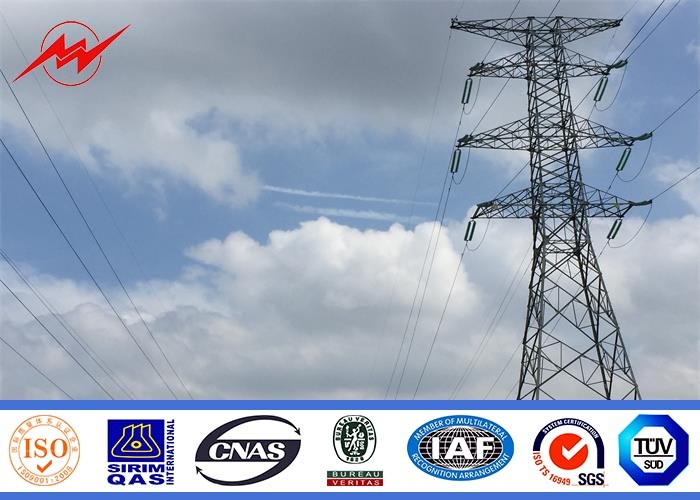

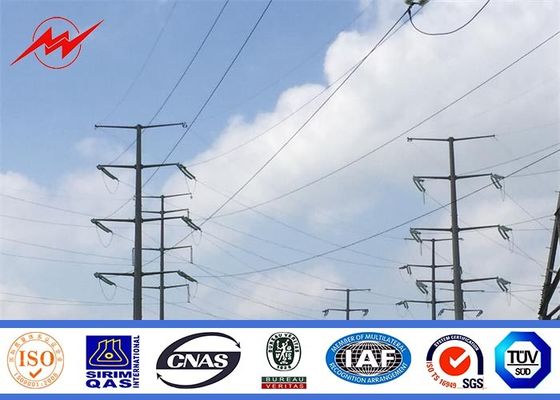

Polygonal tubular or lattice steel electrical power pole for line
Specifications:
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We have past flaw testing. Internal and external double welding makes |
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Raw material test → Cutting →Molding or bending →Welding |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Description:
Standard Accessory
- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder
Inspection:
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2. Introducing ISO management ,We are awared ISO 9001:2008 certificate.
3. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment.
Production process:
As an BV, ISO, approved supplier in China, we have more than 20 years produce and export
steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material
with our professional workers and advance equipment.
Company Introduction:
Jiangsu Milky Way Steel Poles Co.,Ltd (Original name:Yi xing Milky Way Steel Poles Factory) was
founded in 1991 is a cooperative shares system corp. The company covers an area of 150,000 square
meter .It is now centralizing in pole design, ,research, production ,and installation. After twenty years of
development,the company owns Hot Spray Coating Zinc Branch Factory ,Anhui Steel Branch ,Milky Way
Lighting Installation Engineering Company. The total asset of the company amount to 100 million RMB
and the annual production of transmission pole comes to 20 thousand ton per year.The annual
production of steel structure comes to 10 ton and street pole of 30 thousand sets .
