Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission

گواهی
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

چت IM آنلاین در حال حاضر

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission

چین Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission تامین کننده
Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission تامین کننده Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission تامین کننده Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission تامین کننده Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission تامین کننده

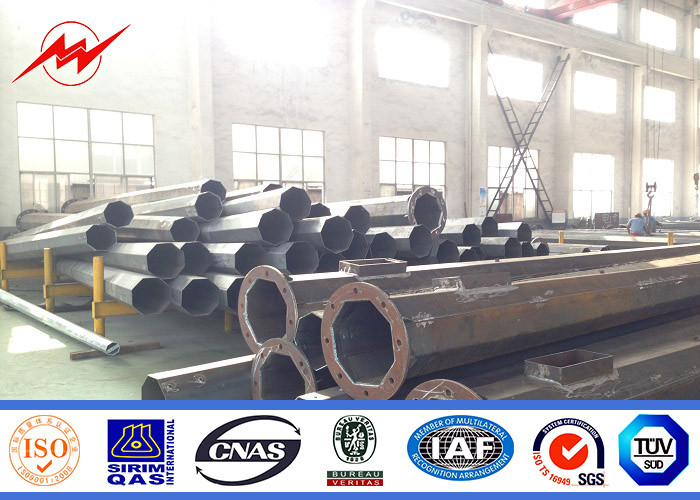

تصویر بزرگ :  Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission

جزئیات محصول:

Place of Origin: China
نام تجاری: Milky Way
گواهی: /BV/ISO
Model Number: Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission

پرداخت:

Minimum Order Quantity: one 40 HQ
قیمت: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
مخاطب
توضیحات محصول جزئیات
قدرت: 10kv ~ 550kv تایپ کنید: قطب مستقیم ، قطب کششی ، قطب چرخشی
ضخامت: 1 میلی متر تا 30 میلی متر سرعت باد: 160 کیلومتر در ساعت ، 30 متر بر ثانیه
تحمل: +/- 2٪ طراحی بار در کیلوگرم: 300 ~ 1000 کیلوگرم به 50cm از قطب اعمال می شود
برجسته:

قطب فولاد گالوانیزه چند ضلعی

,

قطب فولاد گالوانیزه چند ضلعی

,

قطب فولاد گالوانیزه انتقال برق

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission





Specification



Material:

high quality Q345 hot rolled steel

Mounting Height:

3-30m or according to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine



Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating:

Pure polyester powder painting, color is optional

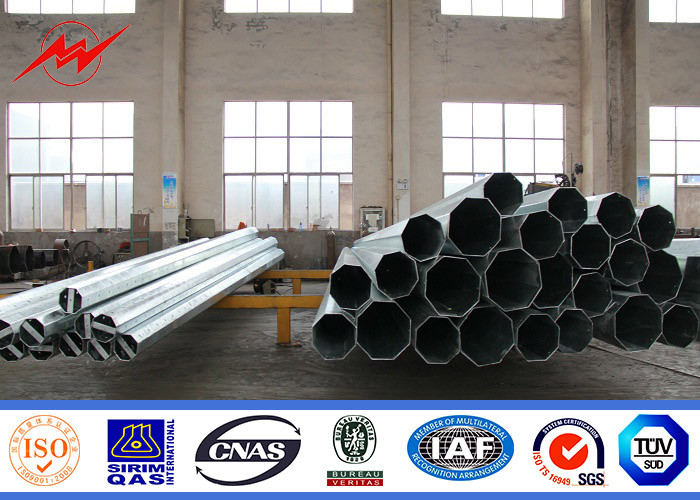

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission 0



Production Process



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.

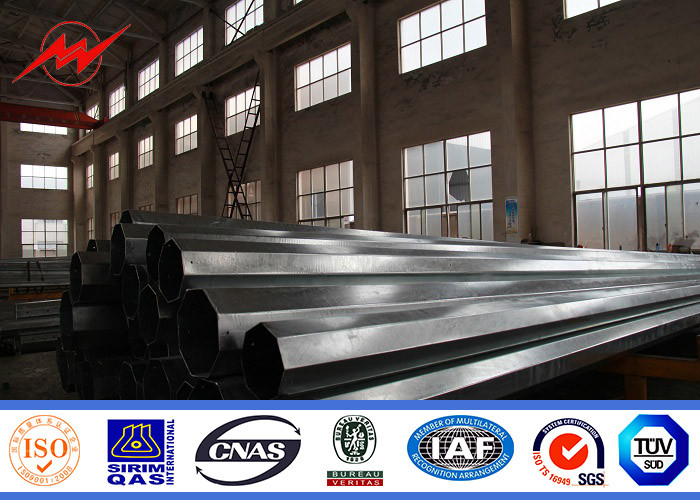

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission 1



Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.

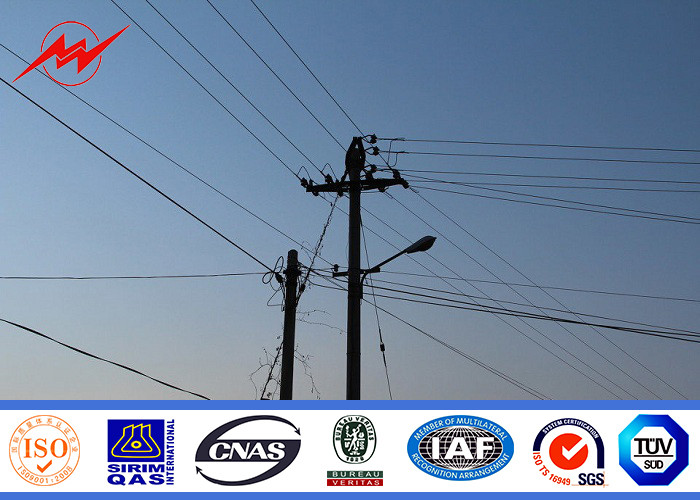

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission 2
