XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C

چین XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C تامین کننده
XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C تامین کننده XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C تامین کننده XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C تامین کننده XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C تامین کننده

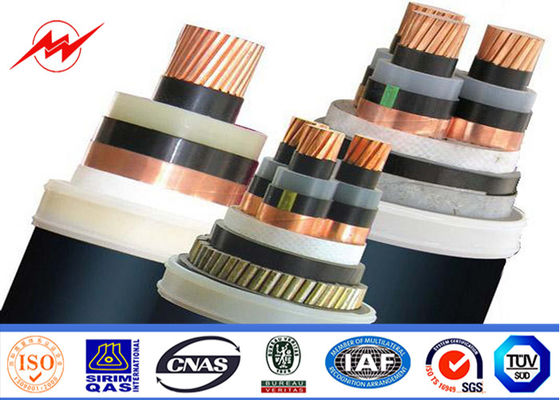

تصویر بزرگ :  XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: BAO WO
گواهی: ISO/CE/UL/CSA
Model Number: 11kv power cable

پرداخت:

Minimum Order Quantity: 3000 Meters
قیمت: USD1-100 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
مخاطب
توضیحات محصول جزئیات
Voltage: 11kv Standard: ISO9001 GB/T 12706.2-2008
Jacket: XLPE Armour: Steel Wire, or Steel Tape, or Aluminium Tape optional
Filler: Fillers strip, Yarn, or Paper Operating Temperature: 90°C, 110°C
Type: medium voltage cable Cores: 1C,2C,3C,4C, 5C, 3C+1E,4C+1E, 3C+2E
برجسته:

electrical power cable,cables and wires

,

cables and wires

XLPE insulated steel wire armoured 11kv power cable multi cores 400/500mm²



Specifications:



Conductor

99.5% Pure Oxygen Free Copper or Aluminum alloy

sheath:

PE.PVC/XLPE

Voltage :

11kv

No. of cores:

1C,2C,3C,4C, 5C, 3C+1E,4C+1E, 3C+2E

Section of conductor(mm ²):

1.5—250

Application :

This kind of cable can be used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

INSULATION THICKNESS(mm) :

1.0—2.79

Color:

Black

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Delivery time:

10—20 days

Payment Terms:

L/C,D/A,D/P,T/T, Western Union

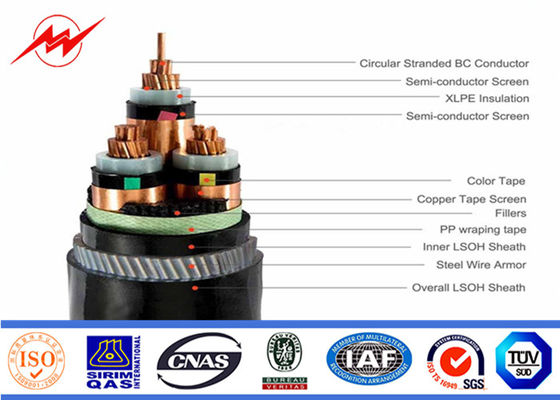

  XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C 0





1. Rated voltage: 6/11kV(10kV)

2. No. of core: Single core or three cores and more.

3. The highest allowed operating temperature of conductor for long-term working is 90℃. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250℃.

4. D.C. resistance of the conductor complies with the stipulations of 6/11kV(10kV)

5. The environment temperature should be no lower than 0oC when lay. Otherwise it should be preheated.

6. The cable is laid without horizontal drop limit.

7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.

8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.

9. Minimum Bending Radius

    Single core - Fixed: 15 x overall diameter

    Three core - Fixed: 12 x overall diameter

   (Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent      to joint or terminations provided that the bending is carefully controlled by the use of a former)



XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C 1

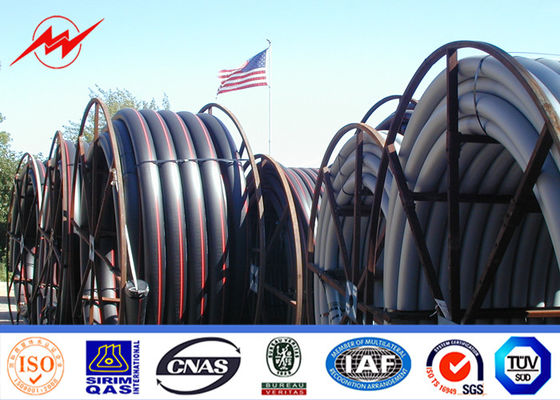

Packing

  Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement

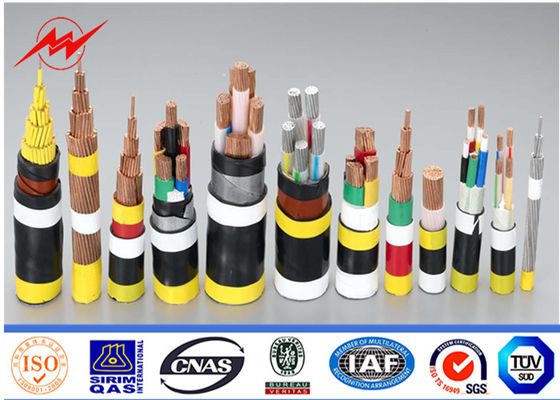

XLPE Insulated Steel Wire Armoured 11kv Power Cable 400/500mm² 90°C 110°C 2





Note:

  The single core armoured cables are used for D.C. system only. If used for A.C. system, the magnetic isolation should be applied on the steel armoire wires of non-magnetical materials should be used.





FAQ

Inquiry response: Your kind inquiry will be replied in 24 hours;

Sample: all cable sample is avaliable, the sample is for free;

OEM & ODM are acceptable to us;

Warranty period: 12 months
