Polgonal 35M High Mast Polone برای روشنایی استادیوم

چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
چین Jiangsu milky way steel poles co.,ltd گواهینامه ها
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

چت IM آنلاین در حال حاضر

Polgonal 35M High Mast Polone برای روشنایی استادیوم

چین Polgonal 35M High Mast Polone برای روشنایی استادیوم تامین کننده
Polgonal 35M High Mast Polone برای روشنایی استادیوم تامین کننده Polgonal 35M High Mast Polone برای روشنایی استادیوم تامین کننده Polgonal 35M High Mast Polone برای روشنایی استادیوم تامین کننده Polgonal 35M High Mast Polone برای روشنایی استادیوم تامین کننده

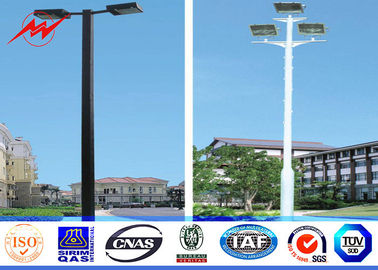

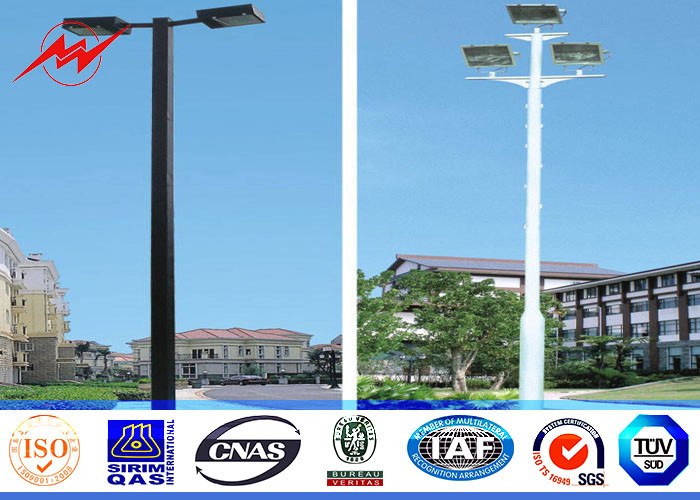

تصویر بزرگ :  Polgonal 35M High Mast Polone برای روشنایی استادیوم

جزئیات محصول:

Place of Origin: Yixing,Jiangsu,China
نام تجاری: Milky Way
گواهی: ISO9001
Model Number: High Mast Light

پرداخت:

Minimum Order Quantity: 1 Poles
قیمت: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
مخاطب
توضیحات محصول جزئیات
نام آیتم: قطب دکل بلند چند ضلعی مواد: Q345
ارتفاع: 35 میلیون استفاده: نورپردازی استادیوم
سطح تمام شد: گالوانیزه گرم کاربرد: راه خیابان، بزرگراه، فرودگاه، استادیوم
برجسته:

تیر روشنایی دکل بالا

,

قطب نور پارک

,

تیر دکل ارتفاع 35 متر

Polygonal 35M High Mast Pole Q345 material for Stadium Lighting with accessories





Quick Information



High-mast lighting installations are often located where today’s most busy expressways merge or intersect. Milky Way's tapered steel high-mast poles also support other large-area lighting applications, such as those found at busy ports and in heavy-industry zones. In all these applications, safety is paramount and technical design expertise is essential.



Options:


• The High Mast is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury installed.
• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.







Quick Product Description-High Mast Lighting Pole



Item 30 MTR 25 MTR
Material Construction Q345(Gr50) Q345(Gr50)
No. of Longitudinal Welds Single/Double Single/Double
Cross section of mast in polygon((No. of Sides) Octagonal,dodecagon,hexadecagon Octagonal,dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design 4mm,6mm,8mm,10mm or customized design
Individual Section’s Length 10500mm 8833mm
Base & Top dia (OAF) 520/200mm 485/200mm
Thickness of galvanization(Average) 86 Microns 86 Microns
Size of opening door at base 360 x 1400 mm 360 x 1400 mm
Size of base plate diameter 700 mm 685 mm
Size of base plate thickness 32 mm 32 mm
Number of foundation bolts 16 12
Bolt diameter 28 mm 28 mm


Application


• Fly Overs
• Road Junction
• Parks
• Parking Areas
• Apron Lighting
• Airports/Dockyards
• Coal Handling
• Power Plants
• Container Terminals
• Petrole Pumps
• Any other Outdoor Application





Details for High Mast Pole Anchor Bolt

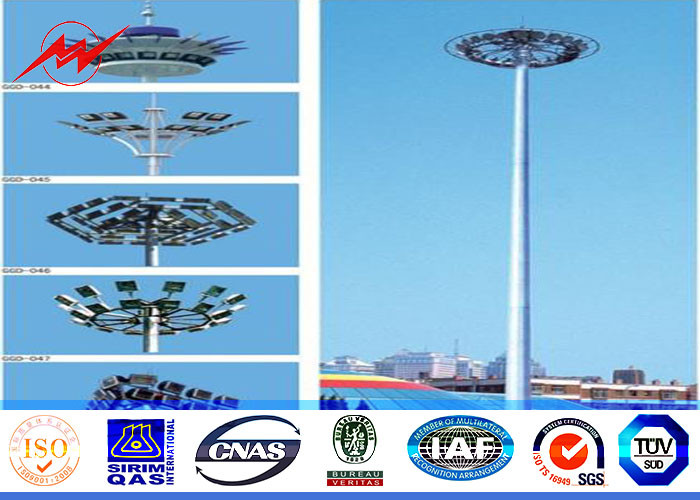

Polgonal 35M High Mast Polone برای روشنایی استادیوم 0







ACCESSORIES



Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.



IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.

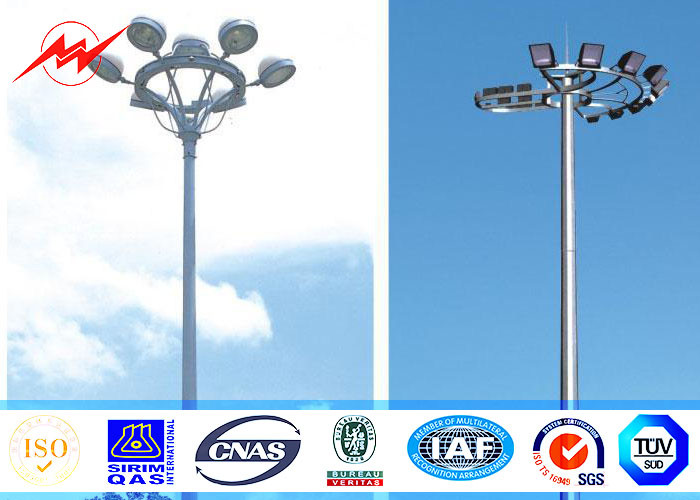

Polgonal 35M High Mast Polone برای روشنایی استادیوم 1



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.



Special Features of High Mast



• 2 Section Mast for 12/16/20 Mt.

• 3 Section Mast for 25/30 Mt.

• 4 Section Mast for 35/40 Mt.

• Wind Velocity upto 200 km/hr

• Galvanised Steel.

• 2/3 Pulley wirerope system

• Motorised & Manually operated Winch for Lantern Carriage

• Flood Light Luminaires with appropriate

  CG Box & HID Lamps

• Aviation obstruction Lamp for LED &

  GLS application



Overseas Project

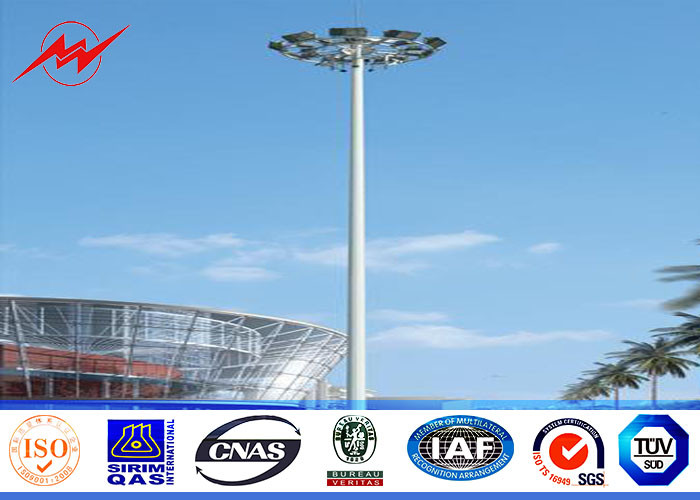

Polgonal 35M High Mast Polone برای روشنایی استادیوم 2







Company Introduction



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.



We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.



The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
