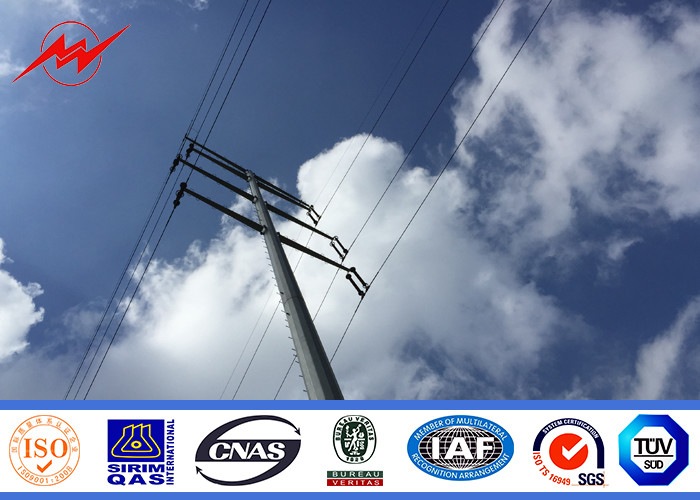

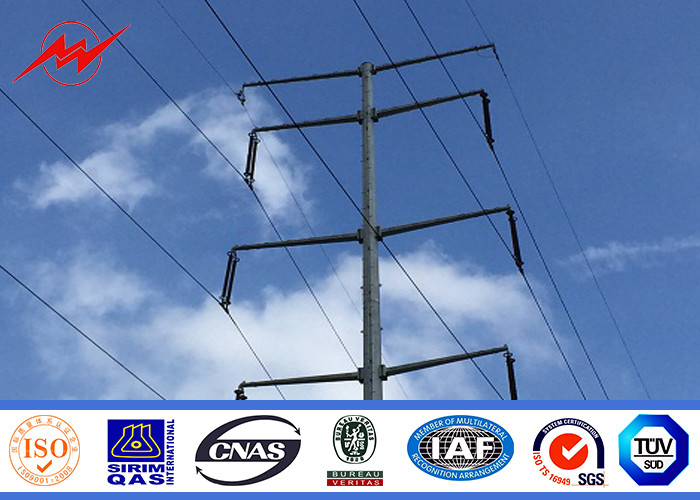

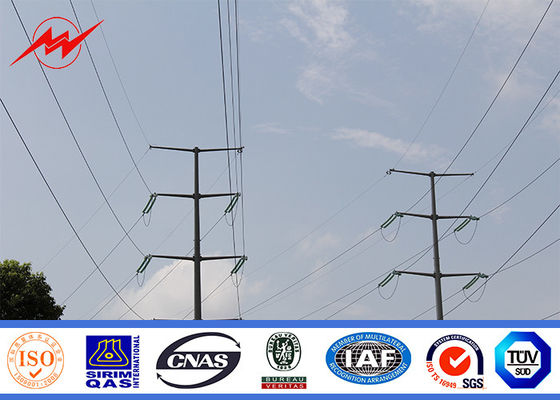

15m Galvanized Tubular Electrical Utility Poles 69 Kv Steel Transmission Poles

15m Galvanized Tubular Steel Utility Pole 69 Kv Steel Transmission Poles Africa Standard

Options:

• The Power Distribution Pole is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The Power Distribution Pole covers Voltage between 10-220KV.

• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.

• Standard Corrosion Protection: hot dip galvanising (above and in-ground)

• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.

• Pre-drilling for removable safety steps is available.

• Cross arms available.

Technical Data Sheet

More Products

The information to inquiry or purchase

-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other

Design

Company Ability

• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)

• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines

• Straightening machines

• CNC Punching machines

• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm

• Capacity to produce poles in heights from 3m to greater than 75m

• Capable of producing poles for any requirement from small distribution poles to large transmission poles

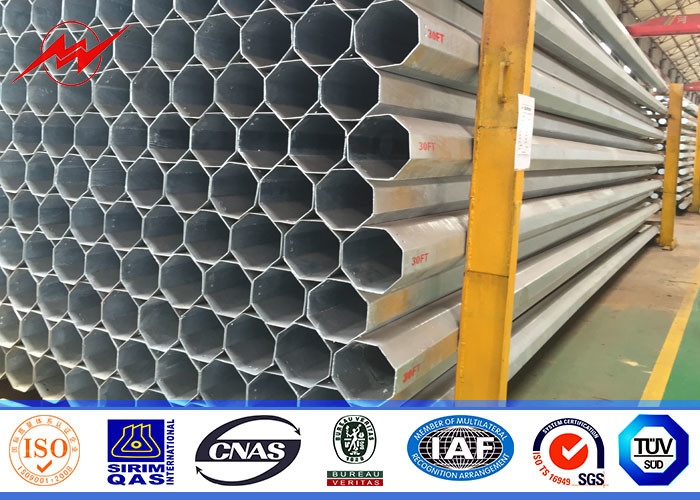

Warehouse

Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

Transmission Structures

Steel Tapered Poles for Transmission Structures

H-frames Power Pole DesignsVariety of Finishes for and Utility Pole Structures

Smaller Diameter Light Steel Structures (Sidewalks and Tight Right-of-Ways)

Custom Design Matching to Wood Pole Classifications

Custom Pole Designs

Wood equivalent Steel Power Pole Configuration for Short Lead Times or Repair Jobs

Antenna Tower Structures

Patented Splice Joints for Steel Structures

Traditional Flange Splices for Steel Structures

Cell Tower Structures

Lattice Design Structures

I-Beam Structures

Pre-Drilled Power Pole Apparatus Using Plasma Burning Process

Self-Conducting Stainless Steel Utility Poles for Grounding Purposes

Hardware for Light Poles

Pre-drilled Holes for Safety Steps and Equipment

No Extra Welding is Needed for Conductor Hookups to Attach Transmission Lines

Single Circuit Line Hookup for Utility Pole Structures

Double Circuit Line Hookup for Utility Pole Structures

Shield Wire Guards to Protect Against Lightning

Substation Structures
