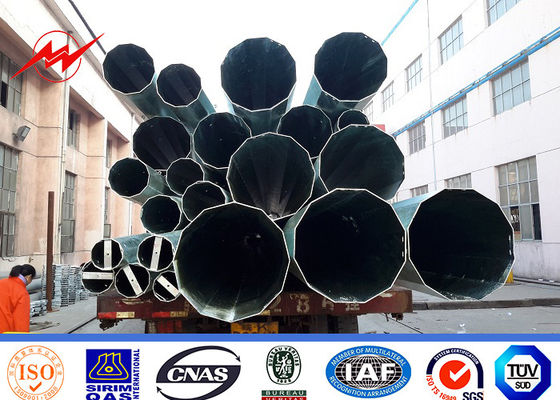

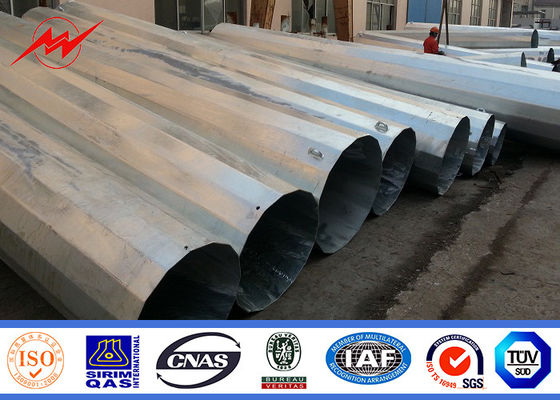

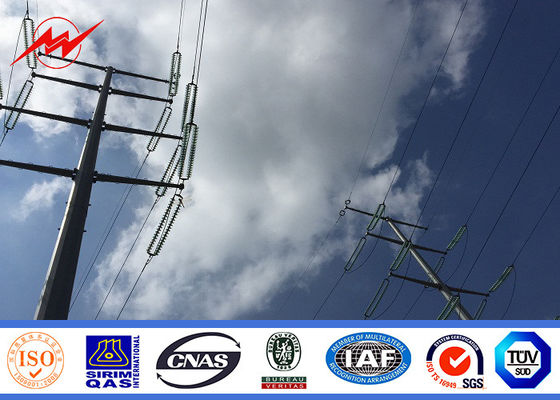

Distribution Line Electrical Power Pole 10m Wall Thickness 3mm Galvanized Steel Pole

1 pcs
MOQ
قابل مذاکره
قیمت
Distribution Line Electrical Power Pole 10m Wall Thickness 3mm Galvanized Steel Pole
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Product Name: Electric Galvanized steel Pole
Application: Distribution Line
Material: SteelQ235,Q345
Minimum yield strength: 355 mpa
Max ultimate tensile strength: 620 mpa
Wall thickness: 1mm-36mm
برجسته کردن:

electric utility poles,steel utility poles

,

steel utility poles
اطلاعات اولیه
Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Electric Steel Power Pole
پرداخت
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
توضیحات محصول

 10m 250daN Bitumen Wall Thickness 3mm Electric Galvanized Steel Pole





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

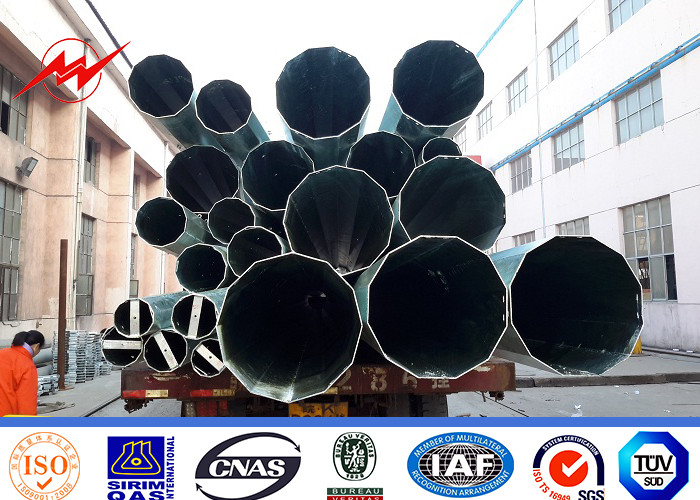

 Distribution Line Electrical Power Pole 10m Wall Thickness 3mm Galvanized Steel Pole 0



 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

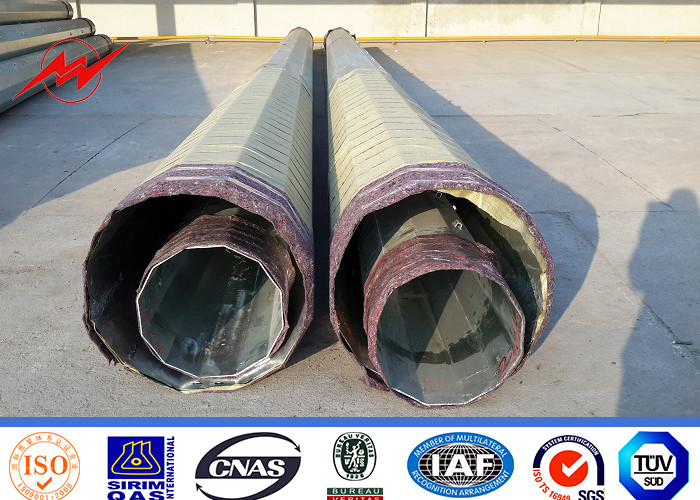

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

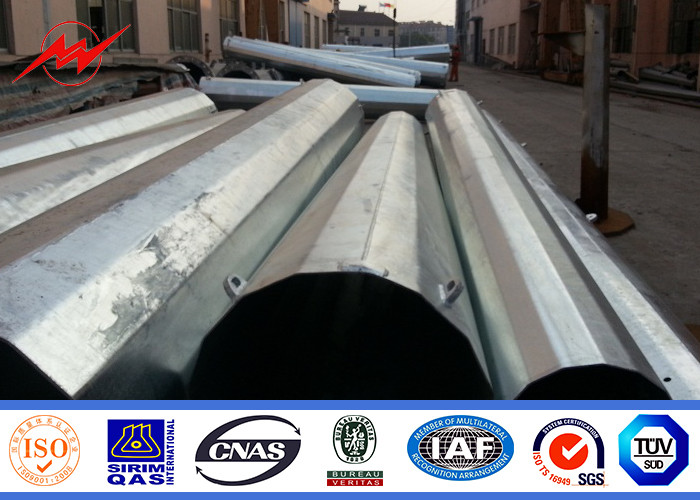

 Distribution Line Electrical Power Pole 10m Wall Thickness 3mm Galvanized Steel Pole 1


 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 More Picture

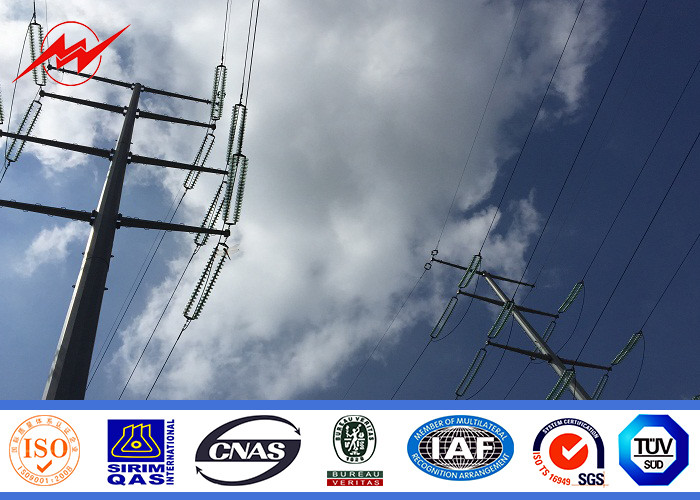

 Distribution Line Electrical Power Pole 10m Wall Thickness 3mm Galvanized Steel Pole 2
