Outdoor Gr65 Dodecagonal 24m 20KN Steel Power Pole for Power Transmission

1 pcs
MOQ
قابل مذاکره
قیمت
Outdoor Gr65 Dodecagonal 24m 20KN Steel Power Pole for Power Transmission
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Product Name: Steel Tubular Pole
Max ultimate tensile strength: 620 mpa
Material: Q235
Length of per section: Within 14m once forming without slip joint
Wall thickness: 3mm
Warranty: 15 years
برجسته کردن:

floodlight pole,commercial light poles

,

commercial light poles
اطلاعات اولیه
Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Steel Tubular Pole
پرداخت
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
توضیحات محصول

 Outdoor Gr65 Dodecagonal 24m 20KN Steel Power Tubular Pole for Power Transmission





 Descripition of material:

 All of our material are purchased from famous mill factory to assure the quality
 A mill certificate issued by the mill factory with stamp and signature must be provided before unload the  material in our factory ,otherwise we have our reason to refuse the material .
 Before put into production ,all the material must pass the chemical and physical analysis to make sure  that they have meet the requested strength and component.



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

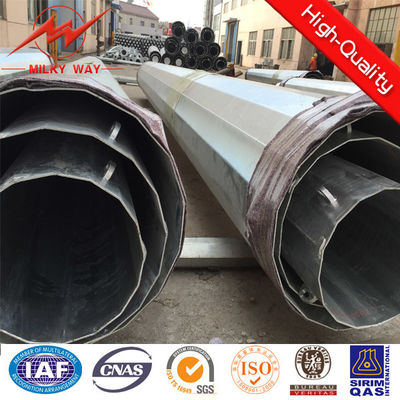

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data







 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained  inspection engineers during every procedure from raw material stage to finished product  and delivery.

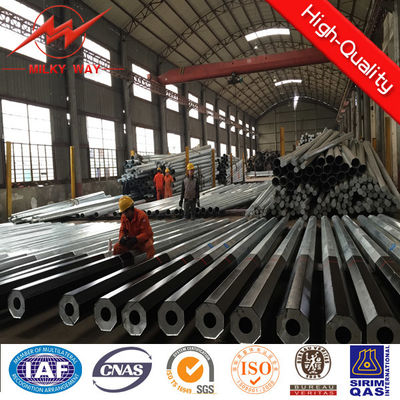

Outdoor Gr65 Dodecagonal 24m 20KN Steel Power Pole for Power Transmission 0



 More Photo

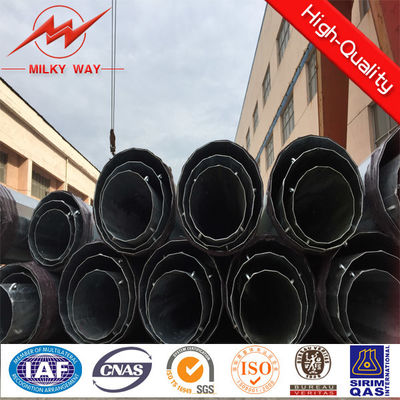

 Outdoor Gr65 Dodecagonal 24m 20KN Steel Power Pole for Power Transmission 1
