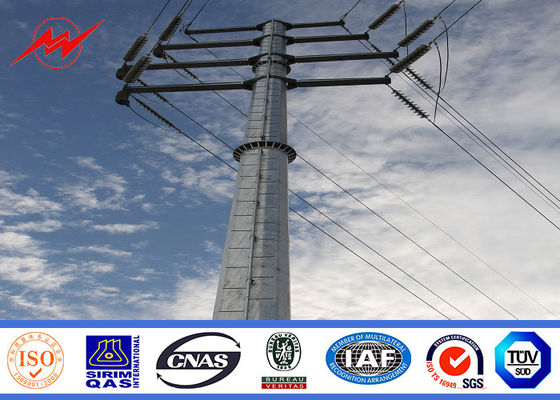

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line

one 40HQ
MOQ
قابل مذاکره
قیمت
Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Surface treatment: hot dip galvanization
Torlance of dimension: +-2%
Design of pole: against earthquake of 8 grade
Wind speed: 160km/h, 30m/s
Suit for: electricity distribution
Length of per section: within 14m once forming without slip joint
برجسته کردن:

transmission line poles,electric power pole

,

electric power pole
اطلاعات اولیه
Place of Origin: China
نام تجاری: Milky Way
گواهی: ISO//BV
Model Number: 110kv Single-circuit Linear Electrical Power Pole For Transmission Line
پرداخت
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
توضیحات محصول

110kv Single-circuit Linear Electrical Power Pole For Transmission Line

Specifications

Pole’s height≥5m
TypeLow ,Middle and higher Voltage
Shape of poleConical, Round, Polygonal (Octagonal, Dodecagonal, etc).
CrossarmDesignas per customers’ requirement
Material

Steel materials conform to ASTM A36, ASTM A572.
Q235 equivalent to SS400, S235JO.
Q345 equivalent to S355JR,Grade 50
Q460 equivalent to S460, Grade 65

Wall thickness2.5mm , 2.75mm, 3.0mm, 3.5mm, 3.75mm, 4.0mm, 4.5mm, 4.75mm, 5.0mm,etc
Sections

≤11900mm can be with one section and loaded into 40HQ container.
≥12000mm need be designed with 2 sections.
Unless use Flat Rack Container.

Welding

Welding complies with CSA and AWS D1.1 standard.

JointJoint with Slip Joint or flange mode.
Installation

1. Burial Type.
2. Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.

GalvanizingHot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Min Yield Stress345 Mpa
Min Tensile Strength470 Mpa ~ 630 Mpa
Voltage10KV~550KV
Limited Weight26 Ton/Container
CertificatesISO 9001-2008 , AAA credit rating, etc
ProtectionAnti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

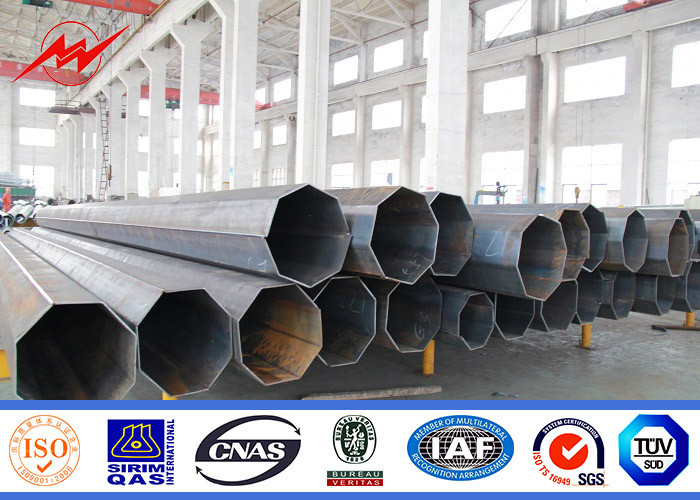

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line 0


The main production equipment electricity steel tube pole
12 m * 1200 tons of CNC hydraulic bending machine
 Longmen submerged arc welding machines / cantilever submerged arc welding machine
 Flange welding


Packaging & Shipping


We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

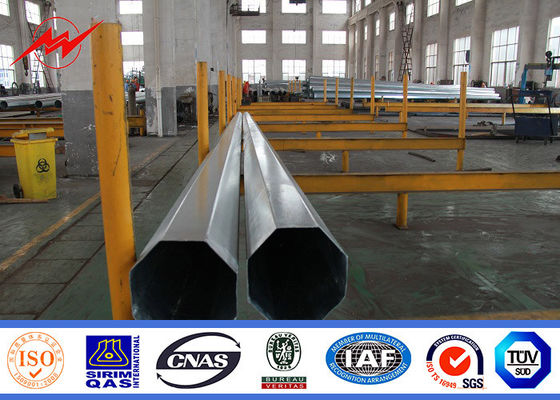

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line 1


Detection and lofting apparatus
1000KN mechanical universal testing machine ( tensile strength, yield strength, elongation, bending, shear and etc.)
Five elements of carbon and sulfur analyzer
The welding quality of ultrasonic flaw detector
Hot dip galvanizing thickness measuring instrument
Theodolite ( 5 ) -- installation verticality measuring tower with
Rebound tester ( measurement of concrete strength)
HP wide-format printers (1.2 meters ) - model, map use
Load test stand 20 meters (for portable base station tower, the cable tower and some non-standard products test)

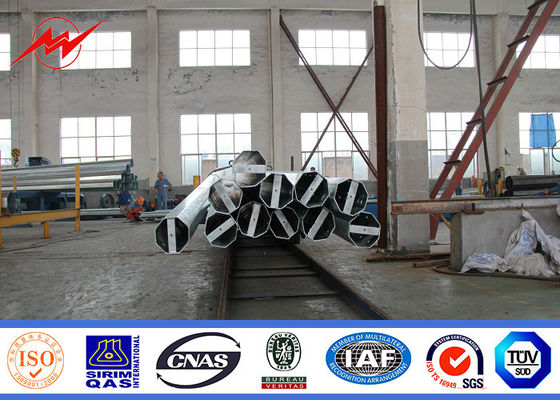

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line 2
