| Material |
Q345 |
| Height |
5-15m, |
| Shape |
Round,octagonal,polygonal |
| Brackets |
Double brackets in the shape as customer's request |
| Base plate |
Square or round in shape with slottes holes for anchor bolt |
| Length |
Within 14m once forming without slip joint |
| Wall thickness |
2.5mm-20mm |
| Galvanizing |
Hot dip galvanization with thickness of 80-100µm average |
Packaging detail
1. Protecion class: IP65
2. Light source: 100W-400W high-pressure sodium lamp
3. Rated voltage and frequency: 220V(±10%)/50Hz
4. Caliber: 60mm
5. Protecting class against eletric shock: Type I
6. Lamp in die-cast aluminum, coated with powder polyes ter after anti-corrosive treatment
7. A lamp body with a built-ray lens
8. Fasteners screws, all stainless steel
9. Applicable height: 6m-12m (according to customers' requirment)
10. Working environment:-35°C--+55°C
11. Long term life :more than 100,000 hours
12. Nast of steel, coated with powder polyester after hot galvanizing treatment
13. Lamp can adjust up,down or around and can be changed the projection angle
14. Environmentally friendly:instead of liquid mercury, easy to recycle
15. Applicable places: City Road,overpass,factory areas,bridge,harbour and etc.
Delivery detail
15-20 days received the deposit(Specific details according to actual situation)
It can be used on main highway,main street,commercial center,etc. outdoor place.
We can according to your design and drawings to produce. If you only need light pole,we are also provide for you.
The above configuration is for reference only. If you are interested in,please feel free to contact us for more information at anytime.
Our Company
Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

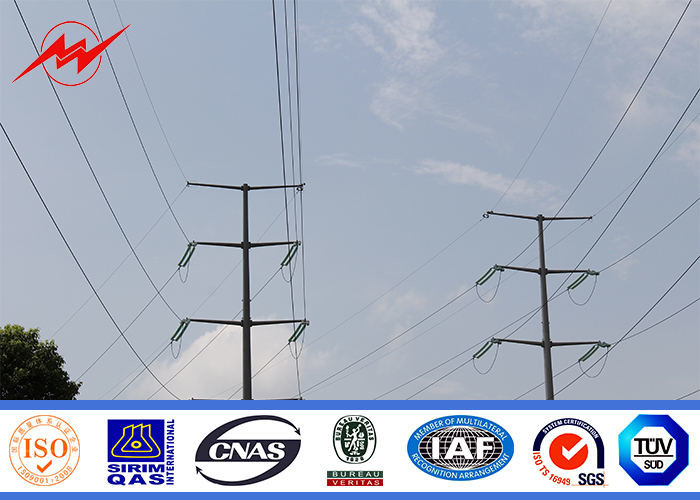

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
