خانه /محصولات/تبلیغات بیلیارد بیرونی/Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346

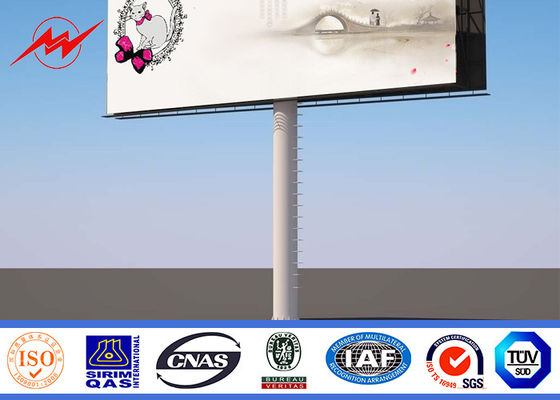

Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346

1 pcs
MOQ
قابل مذاکره
قیمت
Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Type: Outdoor Billboard Advertising
Usage: Outdoor
Pixels: 16mm
galvanization standard: ASTM A123
certificate: ISO
welding standard: AWS D1.1
Generator: Super Silent(7.5KW)
برجسته کردن:

digital billboard advertising,led Billboard Advertising

,

led Billboard Advertising
اطلاعات اولیه
Place of Origin: China
نام تجاری: MilkyWay
گواهی: ISO9001/BV/
Model Number: Outdoor Billboard Advertising
پرداخت
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
توضیحات محصول

 LED Screen Outdoor Billboard Advertising With Backinglighting



Specification:



Items

 Parameter

 LED Encapsulation

 DIP 346

 Pixel Pitch

 10mm

 Module Resolution(W*H)

 32* 32

 Module Size

 320*320mm

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 10000 pixel/sqm

 Driving Method

 1/2 scanning

 Refresh Frequency

 ≥1000Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 White Balance Brightness

 >7000cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 100°     Vertical  Angle 50°

 Optimal Viewing Distance

 >10m

 Working Voltage

 DC4.2V

 Max Power Consumption

 12W/pcs(White Balance)

 Avg Power Consumption

 6W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10℃ ~50℃

 Weight

 0.6kg/pcs



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.
 Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346 0


 Welding:
 Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and  external double welding makes the welding beautiful in shape. It confirms with the international welding  standard of CWB and AWS D 1.1
 Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346 1


 Application scopes:

 Widely applied to traffic information distribution of station,quay and  qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.
 Specifications:


Item

V6-P10 LED Outdoor Vehicle Outdoor Billboard Advertising With Backinglighting

Material

Steel,Q235

Height

12M-30M

Width

6M-18M

Sides

Single sides, double sides, triple sides or customized

Usage

Highway, Airport Outdoor Advertising

Connect

Welding connection


Waterproof Outdoor Billboard Advertising , Road LED Screen Billboard DIP 346 2


برچسب:

تبلیغات خارج از بیلبورد

تبلیغات بیلیارد دیجیتال

digital billboard advertising,led Billboard Advertising
