جزئیات محصول:
پرداخت:
|
| ولتاژ: | 220 | مادی: | نایلون |
|---|---|---|---|
| محدوده وزن: | 2.1 کیلوگرم-105 کیلوگرم | قطر چرخ: | 120mm-1040mm |
| عرض چرخ: | 30mm-125mm | اندازه هادی: | 25 mm²-1000mm² |
| بار دارای امتیاز: | 5KN-55KN | ماده چرخشی: | نایلونی/آلومینیوم |
| ماده قاب: | فولاد گالوانیزه | نوع تحمل: | یاطاقان |
| حداکثر هادی: | ≤1000 میلی متر | حداکثر بار: | 55 KN |
| حداکثر وزن: | 105 کیلوگرم | حداقل وزن: | 1.5 کیلوگرم |
| ابعاد محصول: | 660 میلی متر*100 میلی متر | ||

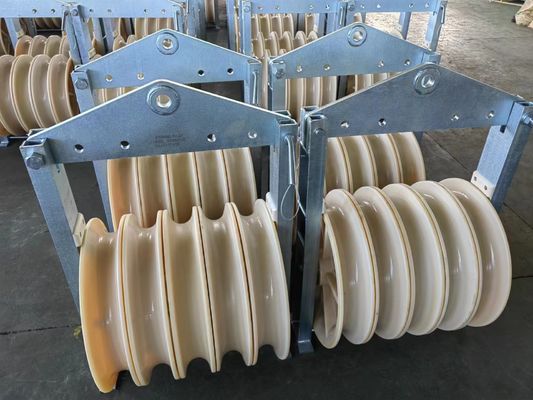

| برجسته کردن: | 660mm*100mm Cable Pulley,220V Stringing Block,Nylon Conductor Pulley,220V Stringing Block,Nylon Conductor Pulley |
||

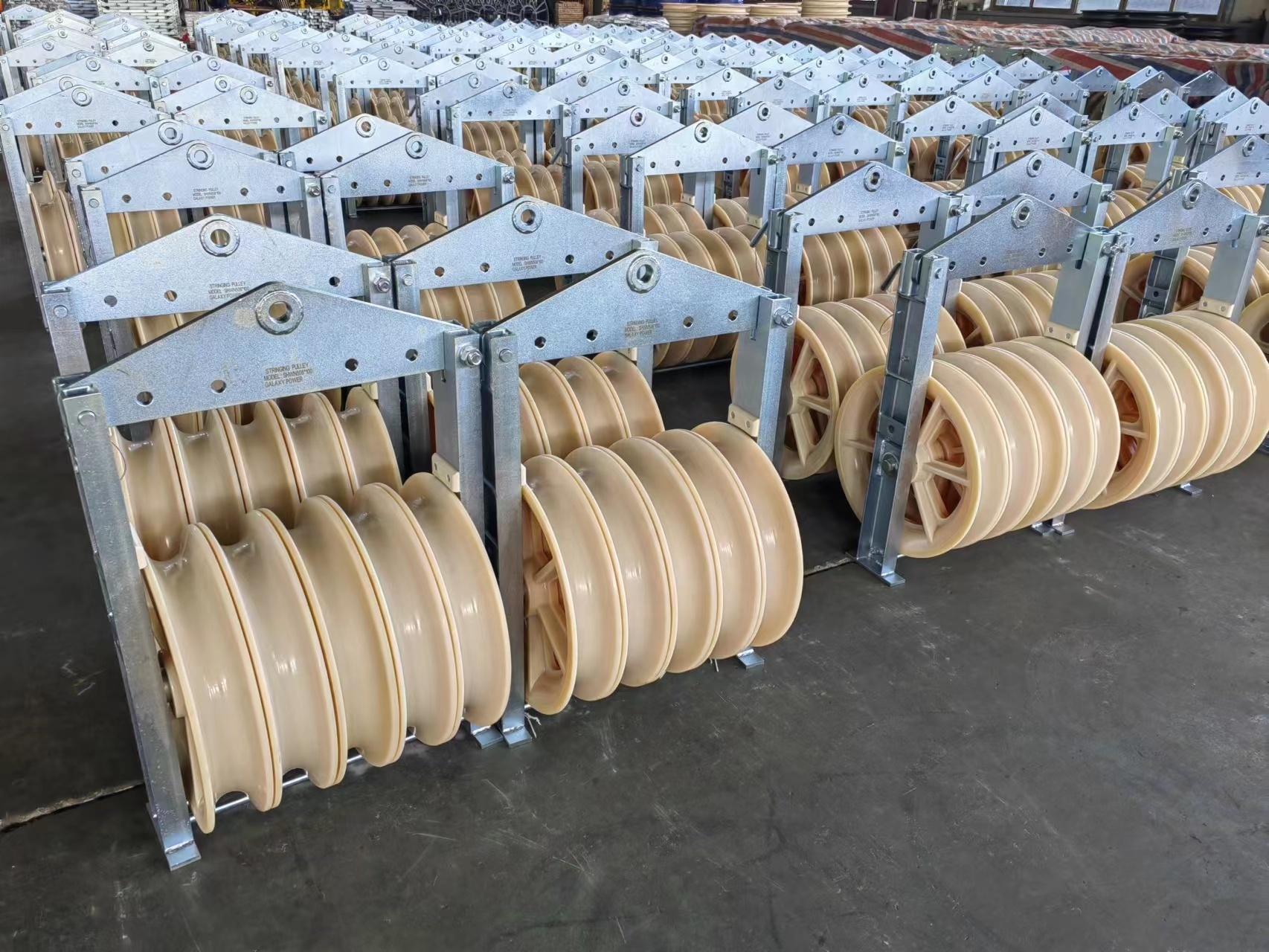

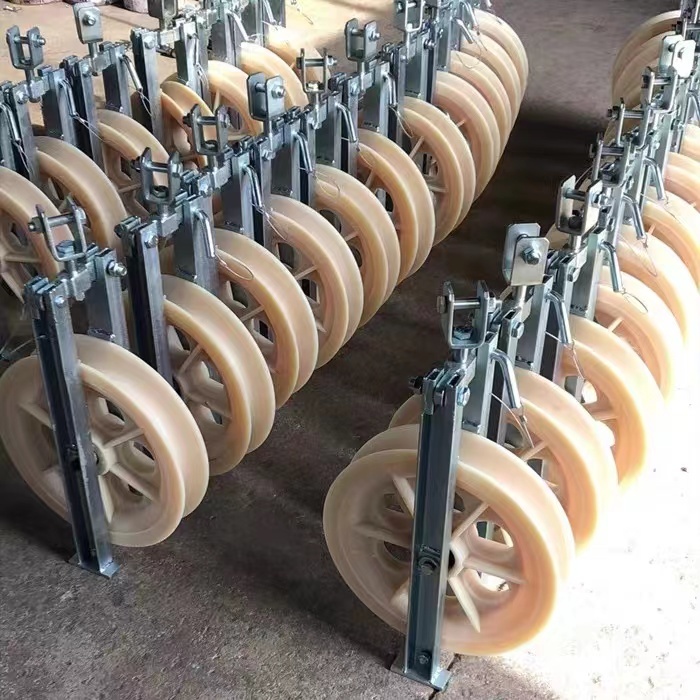

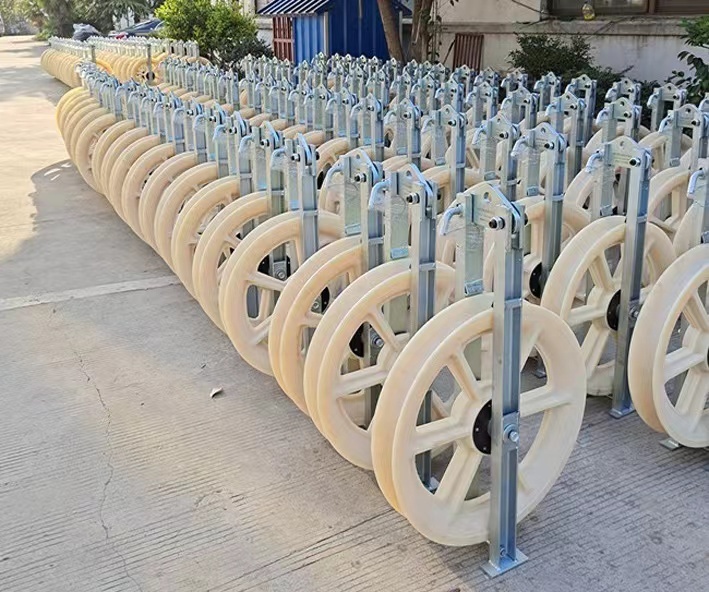

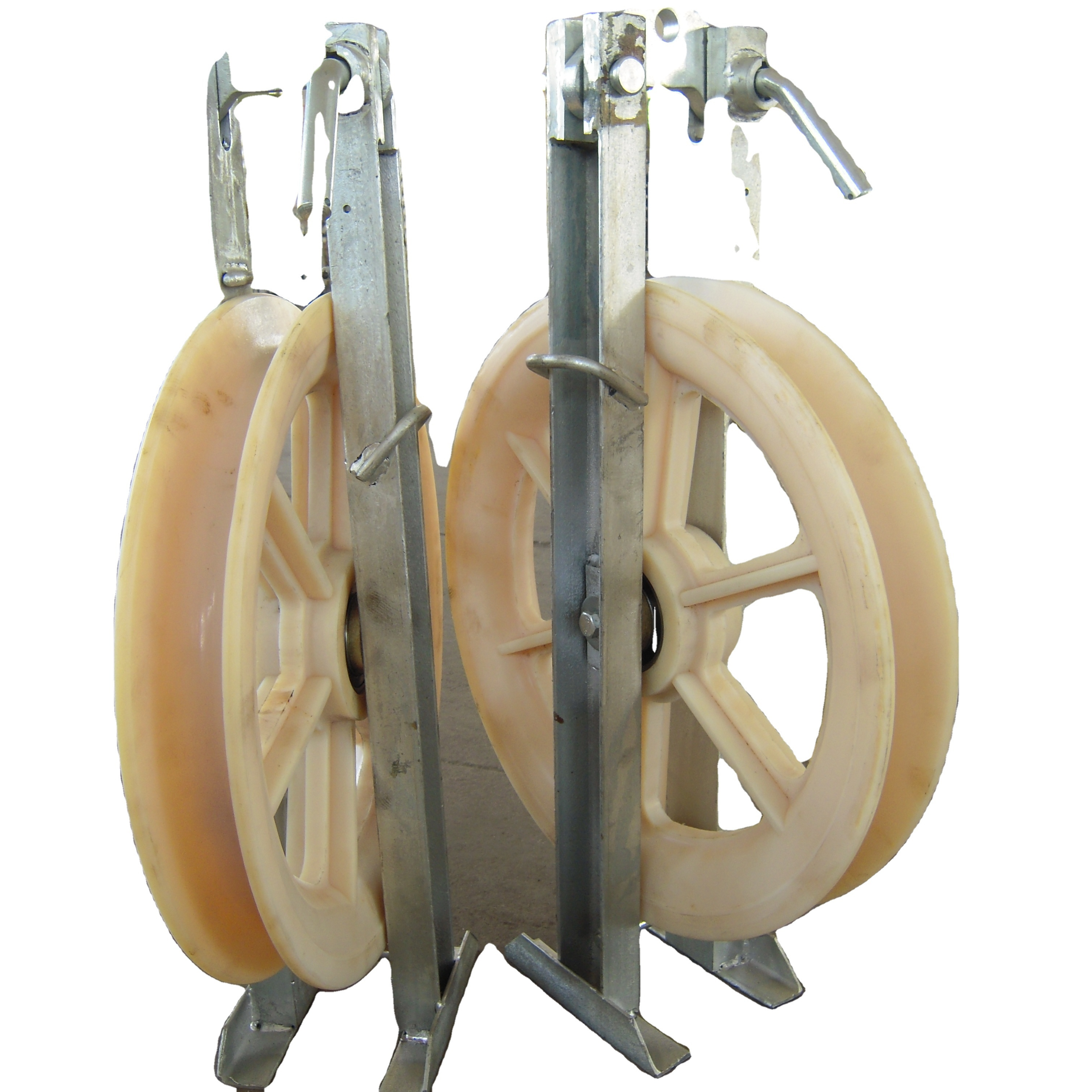

Our high-quality nylon cable pulleys are available in different diameter combinations for various conductor applications. These large diameter stringing blocks offer exceptional strength, flexibility, and durability while remaining lightweight and easy to use.
These cable pulleys protect cables and conductors from friction during installation, saving both time and effort in overhead transmission line construction.
We can manufacture all types of pulley blocks according to customer specifications. Contact us for more information about custom solutions tailored to your requirements.
| Model | Wheel Size (Diameter x Width mm) | Conductor Size (mm²) | Rated Load (kN) | Weight (kg) | Wheel Material |
|---|---|---|---|---|---|
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Established in 2016, Galaxy Power Industry Limited is a manufacturer specializing in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China with products that comply with international quality standards and are appreciated in markets worldwide.
Our products are sold in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan, and throughout China.
