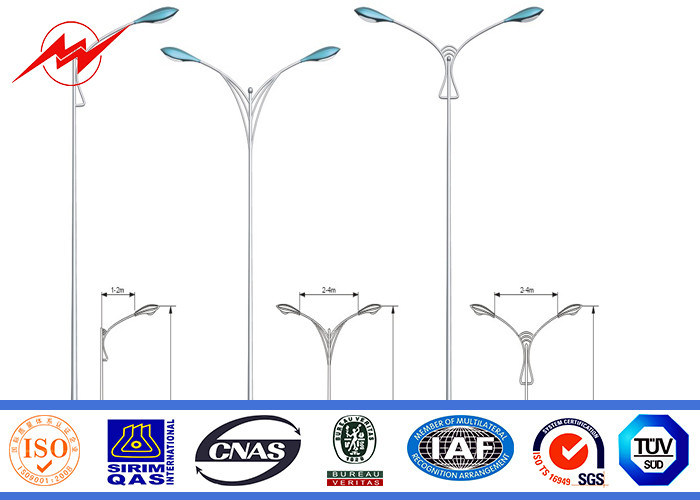

HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm
galvanised steel poles
,power line pole
HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm
Specifications:
|
Height |
From 6 m to 15 m |
|
Electroshock resistant protective grade |
Grade Ⅰ |
|
The casing anti-corrosion performance |
Class Ⅱ |
|
Working atmosphere of lighting fixture |
-35 ℃~+45 ℃ |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
Steel
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.
Application:
Highway Seamless Steel Pipe Park Seamless Steel Pipe
Main Roads Seamless Steel Pipe Dock Seamless Steel Pipe
Secondary Roads Seamless Steel Pipe Stadium Seamless Steel Pipe
Storage-yar Seamless Steel Pipe Overpass Seamless Steel Pipe
Industrial-Plant Seamless Steel Toll-Station Seamless Steel Pipe
Company Introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on- cctv winch camera telescopic mast pole
