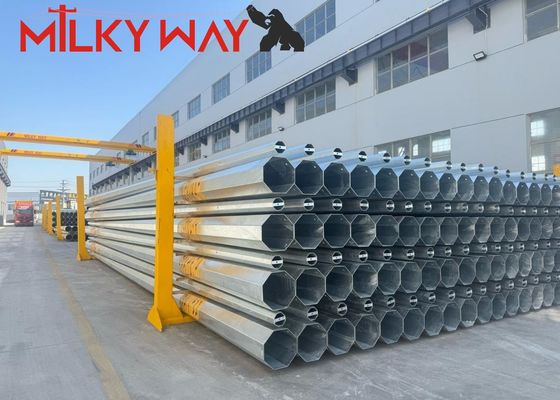

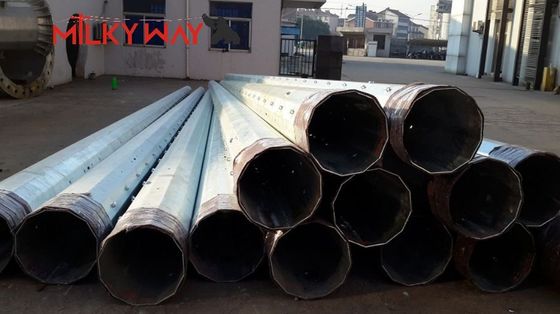

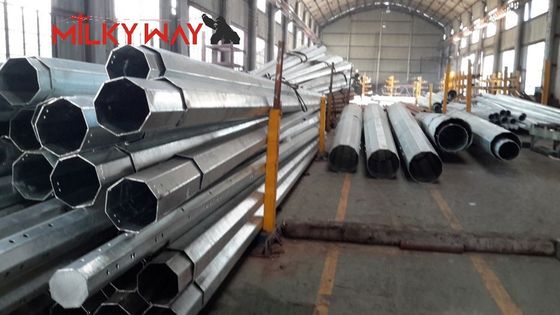

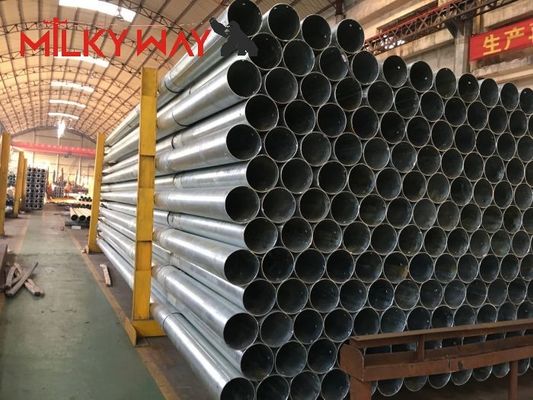

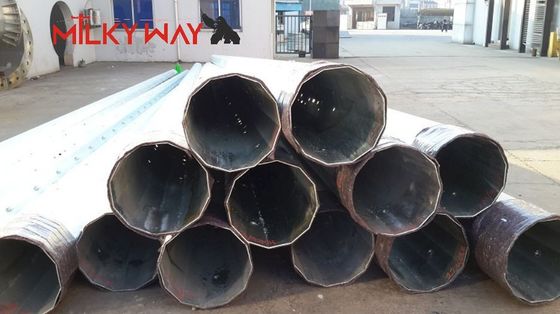

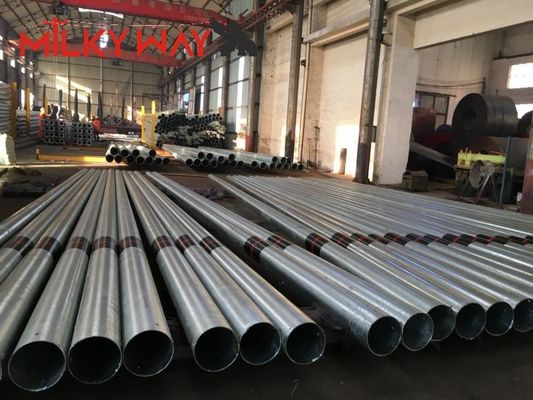

33KV Tubular Octagonal Steel Power Pole with 500 Kg Design Load and Wind Speed 160km/h Earthquake Resistant

یک 40 مقر
MOQ
قابل مذاکره
قیمت
33KV Tubular Octagonal Steel Power Pole with 500 Kg Design Load and Wind Speed 160km/h Earthquake Resistant
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
قدرت: 10 کیلو ولت
سرعت باد: 160 کیلومتر در ساعت
ضخامت: 4 میلی متر
استاندارد جوشکاری: AWS D1.1
تحمل: +/-2٪
بار طراحی بر حسب کیلوگرم: 500 کیلوگرم برای 50 سانتی متر از قطب به قطب اعمال می شود
برجسته کردن:

500 Kg Design Load Steel Power Pole,Wind Speed 160km/h Power Transmission Pole,Earthquake Resistant Electric Transmission Pole

,

Wind Speed 160km/h Power Transmission Pole

,

Earthquake Resistant Electric Transmission Pole
اطلاعات اولیه
محل منبع: چین
نام تجاری: Milky Way
گواهی: /BV/ISO
شماره مدل: قطب فولادی لوله ای خط انتقال برق گالوانیزه گرم 10 کیلو ولت
پرداخت
جزئیات بسته بندی: طبق درخواست مشتری
زمان تحویل: معمولا 2 هفته پس از تایید
شرایط پرداخت: t/t
قابلیت ارائه: 300 قطعه قطب در روز
توضیحات محصول
33KV Tubular Octagonal Steel Power Pole for Electrical Distribution with Hot-dip Galvanization in accordance with ASTM A123
33KV Tubular Octagonal Height Equipment Electrical Distribution Galvanized Line Transmission Steel Power Pole
Specification:
  • Steel materials conform to ASTM A36 with Q235(S235,SS400), Q345(S355JR), Q460, etc
  • Welding: Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection.
  • Finish: Hot-dip galvanized in accordance with ASTM A123.
  • Pole Height: All available
  • Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
  • Type: Straight Pole, Tensile Pole, Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
  • Surface hot-dip-galvanized & painting
  • Resistant: against earthquake of 8.8 grade. Wind speed as design.
  • Quality Standard: ISO9001:2000, AAA credit rating
  • Easy install and maintenance
  • Packages: Normally covered by sack or as customer's requirement.
  • Voltage: 10-550KV
Material: High quality Q345 hot rolled steel
Mounting Height: 3-30m or according to the requirements of customers
Shape of pole: Round, conical, octagonal, square, mid hinged, polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
Brackets: Single or double brackets are in the shape and dimension as per customers requirement
Base plate: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
Ground mounted: The length buried underground as per customers requirement
Galvanizing: Hot dip galvanization with thickness of 80-100µm average
Powder coating: Pure polyester powder painting, color is optional
Features & Advantage
  • High intensity, high resistance of shock or vibration
  • High efficiency up to 85%, 110lm/watt
  • Low illumination attenuation, 3% - 5% degradation/1kh
  • Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps
  • Excellent heat dispersion, and low power consumption
  • Easy installation, free maintenance
  • High Power Factor: 0.85
  • No UV radiation
  • No mercury or other inorganics
  • Constant current to guarantee long life
33KV Tubular Octagonal Steel Power Pole with 500 Kg Design Load and Wind Speed 160km/h Earthquake Resistant 0
Our Services
  • Quick reply within 24 hours
  • Convenient and smooth communication
  • Detailed and professional specifications and guidances of products
  • Lighting solutions by professional technician
  • Fast & Cheap Delivery
  • Free Light study
  • Various Certificates
  • Product Update
  • OEM&ODM available
33KV Tubular Octagonal Steel Power Pole with 500 Kg Design Load and Wind Speed 160km/h Earthquake Resistant 1
33KV Tubular Octagonal Steel Power Pole with 500 Kg Design Load and Wind Speed 160km/h Earthquake Resistant 2
